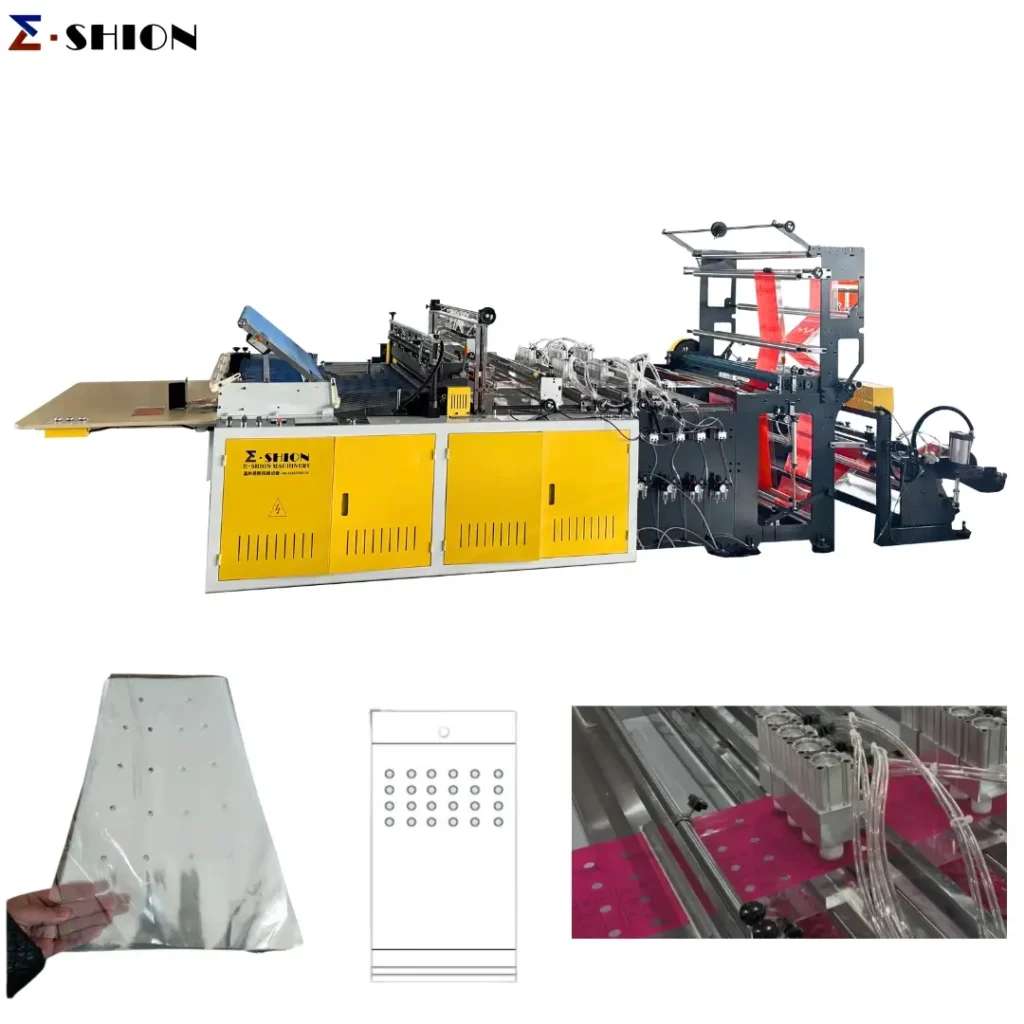

Side Sealing Bag Making Machine – High‑Speed, Stable & Versatile

A side sealing bag making machine is the industry standard for producing high‑strength side seal bags used in retail, food, e‑commerce, and garment packaging. Engineered for efficiency and precision, this equipment processes a wide range of materials including PE, PP, BOPP, and laminated films at speeds typically ranging from 150 to 300 bags per minute—and up to 360 cycles per minute on advanced models.

How It Works – Fully Automated Workflow

Modern side seal bag making machines integrate several automated stages to ensure consistent output with minimal operator intervention:

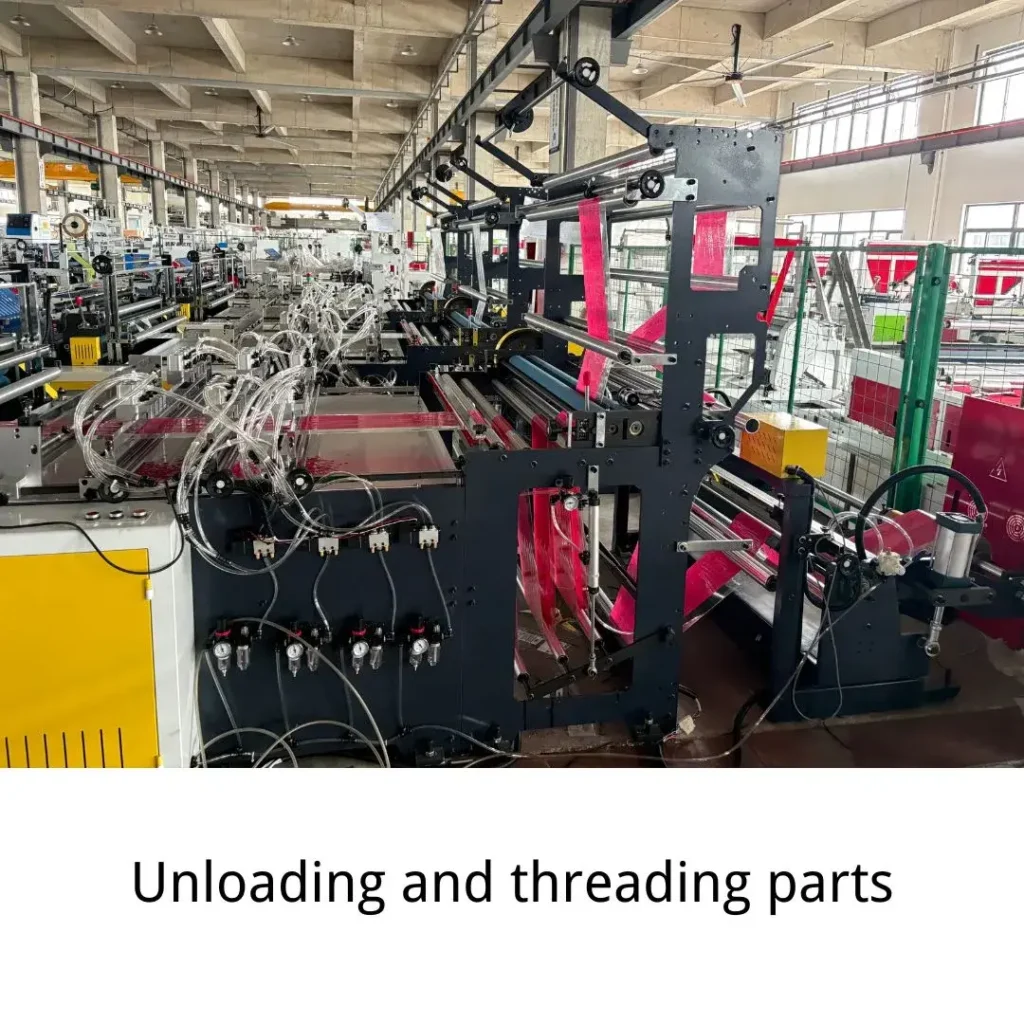

1. Unwinding & Tension Control
   Roll‑fed film is mounted on a shaft with automatic tension regulation via magnetic powder brake and swing arm. This prevents film stretching or slack, ensuring stable feeding even at high speeds.

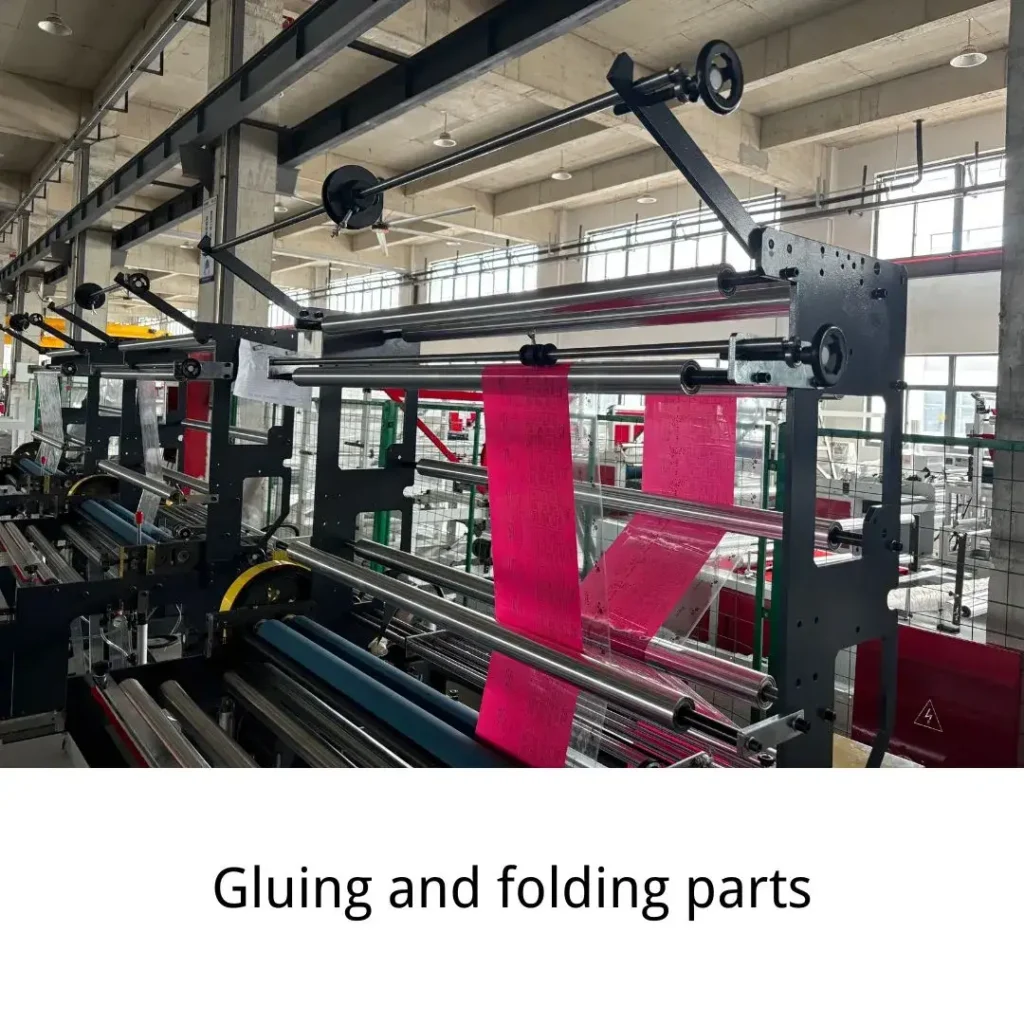

2. Folding
   The film passes through a precision triangular folding board, transforming it into a tubular shape. This step is critical for achieving perfectly aligned side seams.

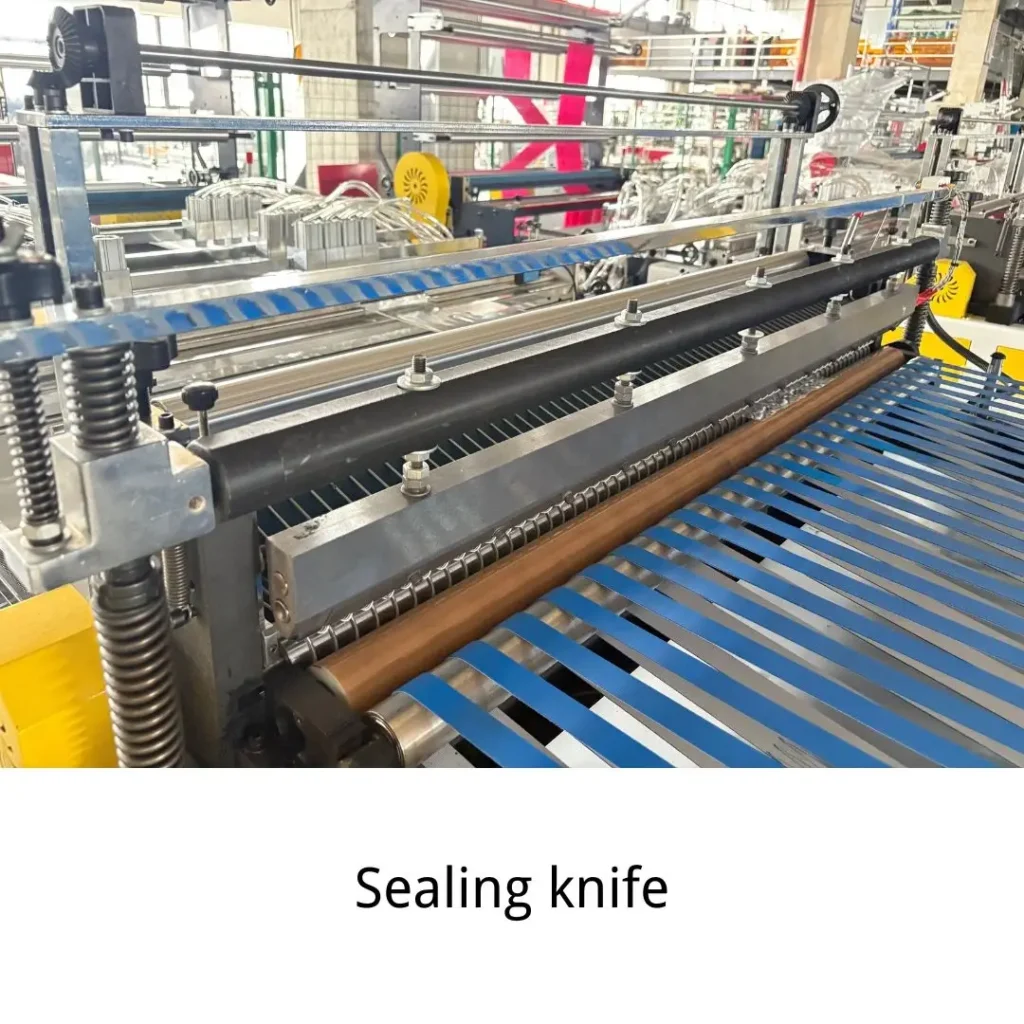

3. Side Sealing
   A pair of heated sealing bars—controlled by advanced temperature controllers (e.g., OMRON or PID)—fuse the overlapping edges. The seal head is often self‑aligning to prevent distortion and ensure uniform, leak‑proof seals.

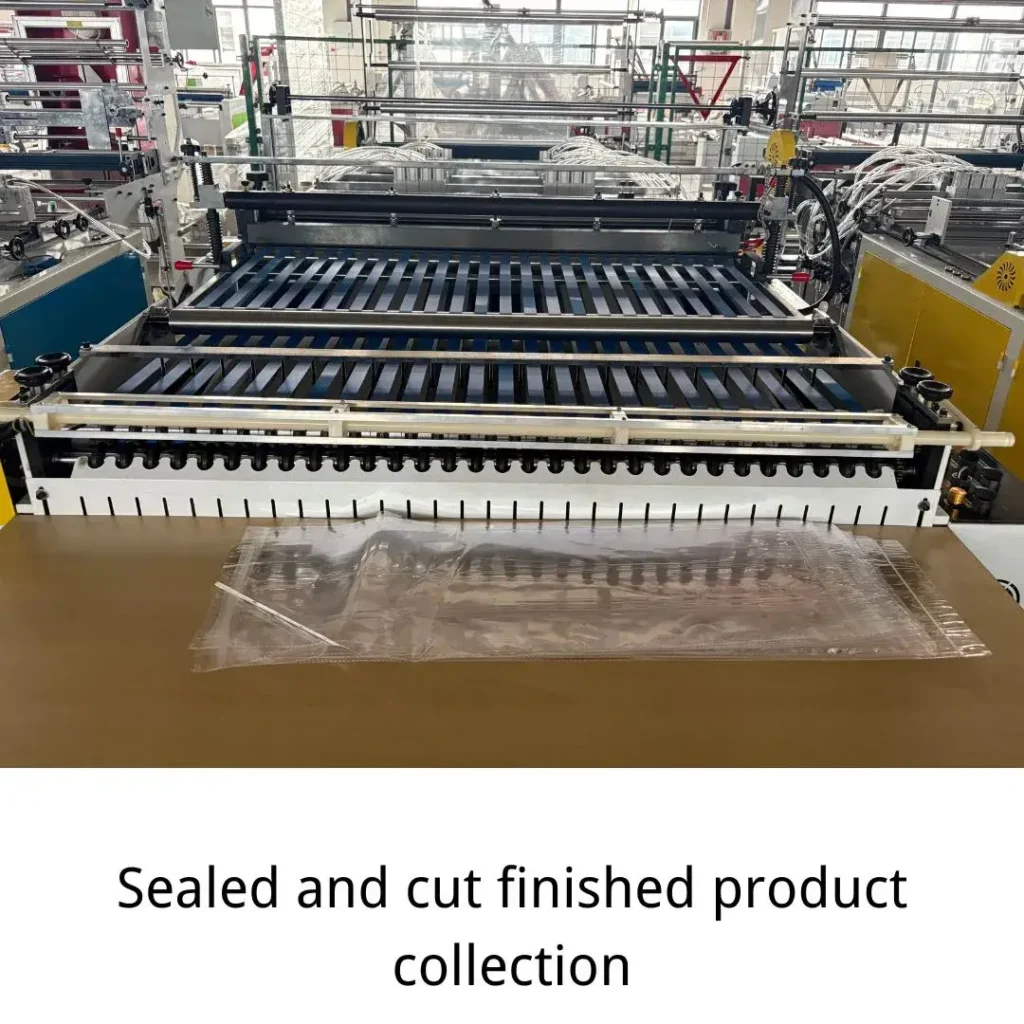

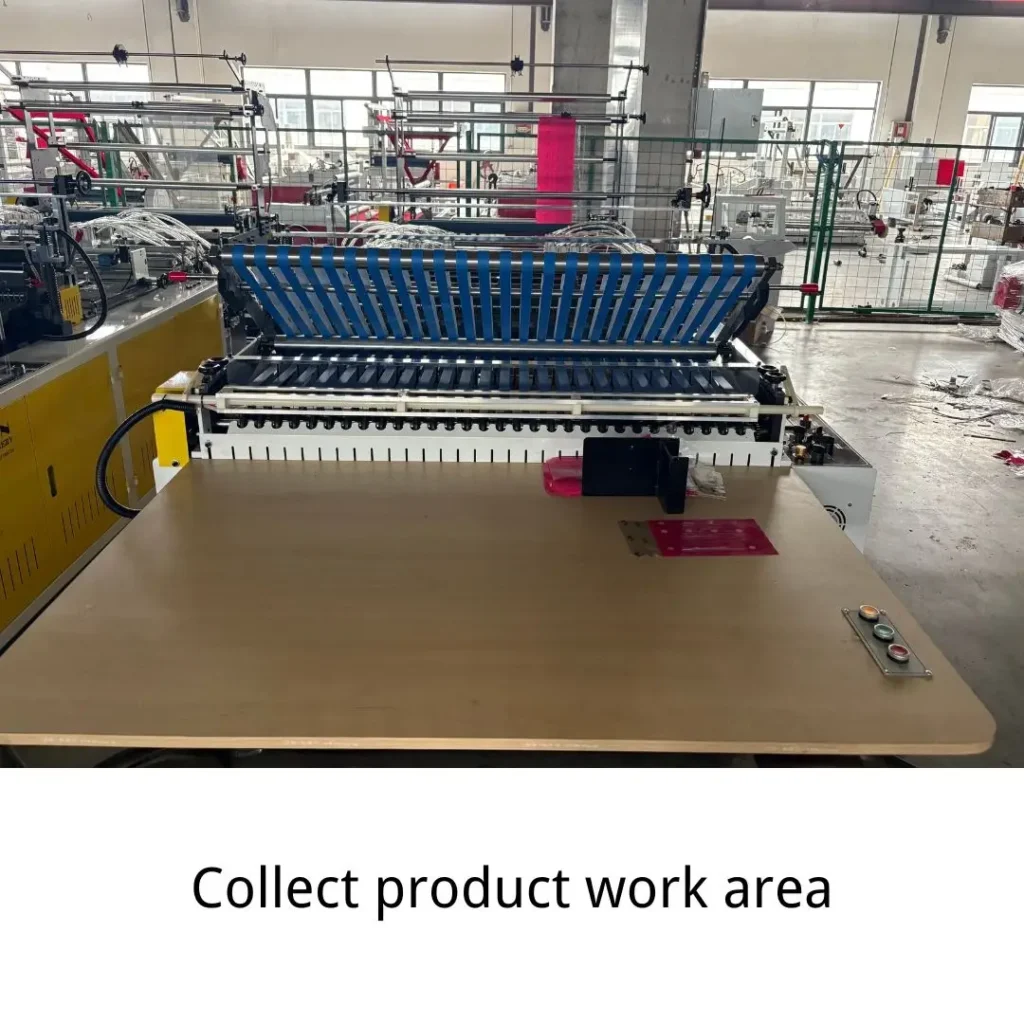

4. Cutting & Discharge
   High‑accuracy rotary or punch cutters separate individual bags. Pneumatic unloading systems then stack or convey finished bags, with speeds reaching 240 bags/minute depending on bag dimensions and film thickness.

Key Features & Performance Advantages

• Servo‑Driven Precision
  A high‑power servo motor drives the indexing and feeding mechanism, achieving ±0.5 mm positioning accuracy. This not only ensures consistent bag dimensions but also reduces energy consumption and mechanical wear.
• Advanced Control System
  Micro‑computer or PLC with a user‑friendly touchscreen allows operators to set bag length, production count, and speed easily. The system includes an error auto‑stop function and a backlit display for clear monitoring.

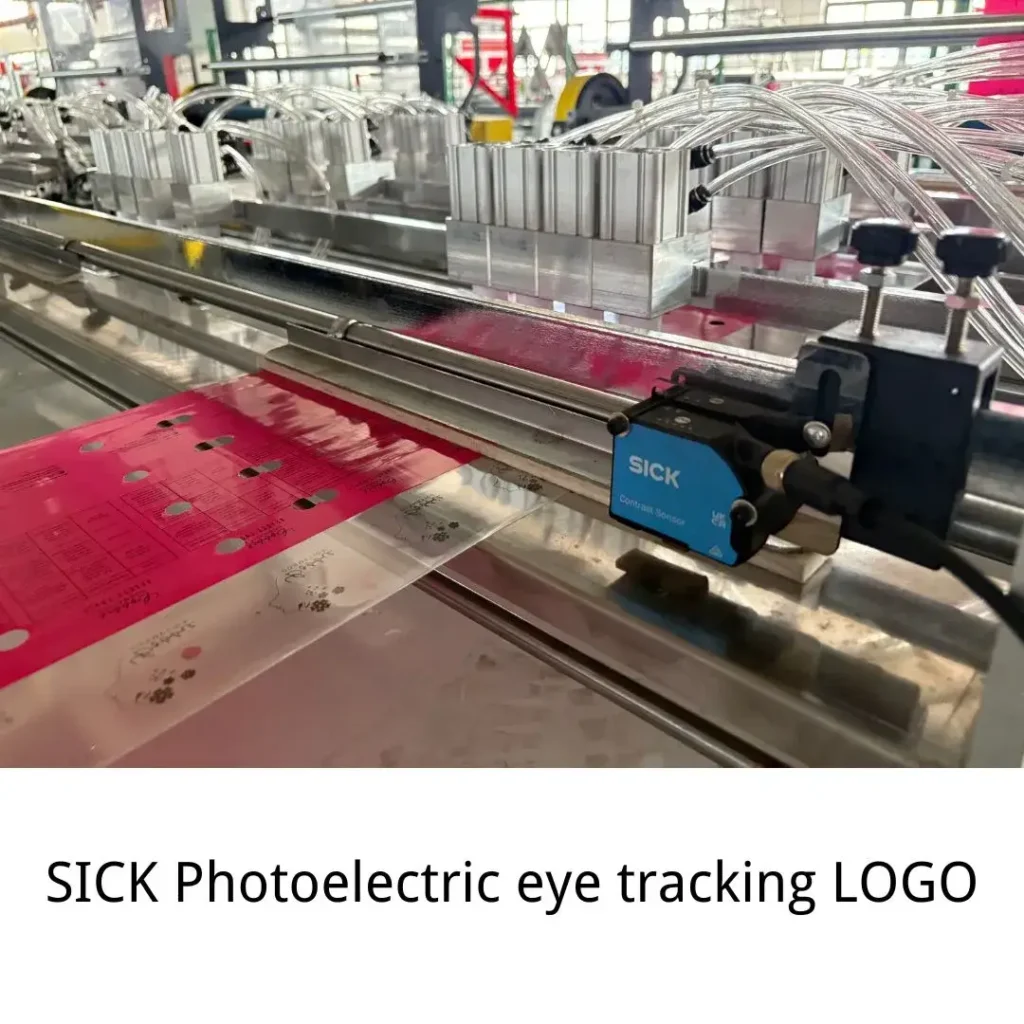

• Registration & Edge Control
  A photoelectric sensor (often from SICK Germany) detects printed marks on the film, ensuring accurate print registration. An automatic edge position control (EPC) guides the film laterally to maintain straight side seals.
• High‑Speed Thermal Sealing
  The sealing system is designed to maintain stable temperature even during continuous high‑speed operation. This results in strong, uniform seals that are essential for food‑safe packaging and heavy‑duty retail bags.

Technical Specifications Comparison

*Speed depends on bag width (50–990 mm), length (10–1150 mm), and film thickness (0.01–0.10 mm).

Wide Range of Applications

Thanks to its versatility, the side seal bag making machine is used across multiple industries:

• E‑commerce & Logistics – Production of courier bags with optional double‑sided adhesive tape for easy sealing.
• Retail & Garment – High‑clarity side seal bags for socks, shirts, and accessories; often combined with hole punching for hangers.
• Food Packaging – Bread, snacks, and frozen food bags benefit from the machine’s consistent, leak‑proof seals.
• Specialty Bags – Gusseted bags, handle‑hole bags, and perforated roll bags can be produced with optional attachments.

Optional Automation Add‑ons

To maximize productivity and reduce manual handling, manufacturers offer various add‑ons:

• Automatic conveyor for stacking and counting
• Perforation unit for roll‑type bags

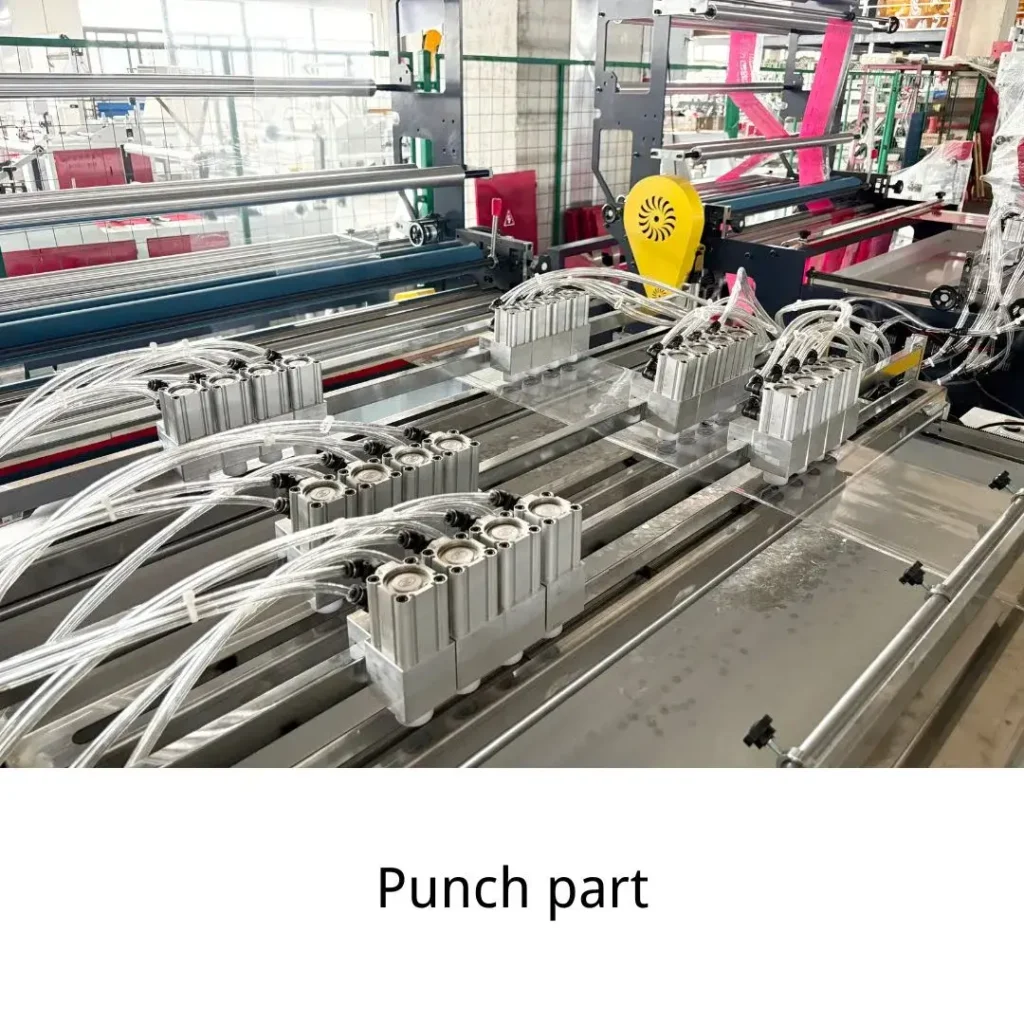

• Punching unit (round, handle, or euro slot)
• Gusset forming device for expandable side gussets
• Waste rewinder for clean edge trim collection

These features transform a standard machine into a fully automated production line, ideal for high‑volume orders.

Side Seal vs. Bottom Seal Machines

Choosing between side seal and bottom seal depends on your application:

Side seal machines are preferred when bag aesthetics and consistent seam strength are priorities.

Why Choose a High‑Speed Side Seal Bag Making Machine?

Investing in a high‑speed side seal bag making machine delivers:

• Higher throughput – Produce tens of thousands of bags per shift with minimal labor.
• Reduced downtime – Quick‑change features and automated error detection keep production running.
• Superior seal quality – Precision temperature control and servo‑driven indexing ensure every bag meets quality standards.
• Lower total cost of ownership – Energy‑efficient servo motors and durable components reduce maintenance costs over time.

For businesses seeking a reliable partner, sourcing from a reputable side seal bag making machine manufacturer ensures long‑term support and access to genuine spare parts. To find the best investment, request a side sealing bag making machine price quote tailored to your production volume and bag specifications.
