The Ultimate Guide to High-Performance Air Bubble Film Machines
In the rapidly evolving world of e-commerce and global logistics, the demand for superior protective packaging has never been higher. At the heart of this industry is the air bubble film machine, a sophisticated piece of engineering designed to produce the lightweight, shock-absorbing, and moisture-resistant materials that keep products safe during transit. Whether you are a packaging manufacturer or a high-volume logistics provider, choosing the right bubble film machine is the most critical decision for your production line.

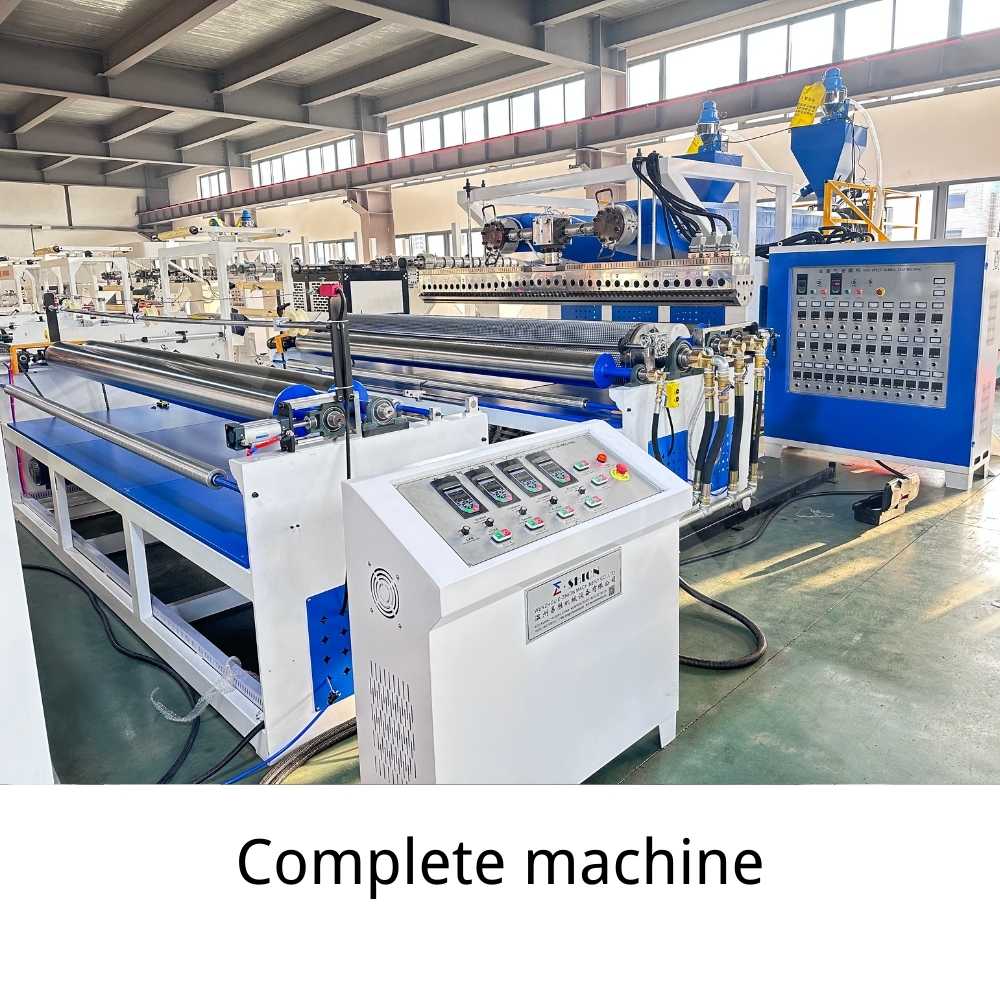

What is a 3-Layer Co-Extrusion Air Bubble Film Machine?
A 3-layer co-extrusion air bubble film machine represents the gold standard in bubble wrap production. Unlike standard single-layer machines, this equipment utilizes three separate extrusion units to create a composite structure. This allows for the integration of specialized materials such as:
- Pearlescent Film: For high-end aesthetics and added strength.
- Aluminum Film: For thermal insulation and moisture barriers.
- Co-extruded Film: For enhanced puncture resistance.
By combining these materials with polyethylene (LDPE/LLDPE), the bubble film machine produces a multi-functional packaging solution that is far superior to standard bubble wrap.
Technical Specifications & Power Breakdown
To achieve a maximum extrusion rate of 280-450 KG/h, our machine is built with heavy-duty components and precision-engineered motors.
| Component | Specification | Details |
|---|---|---|

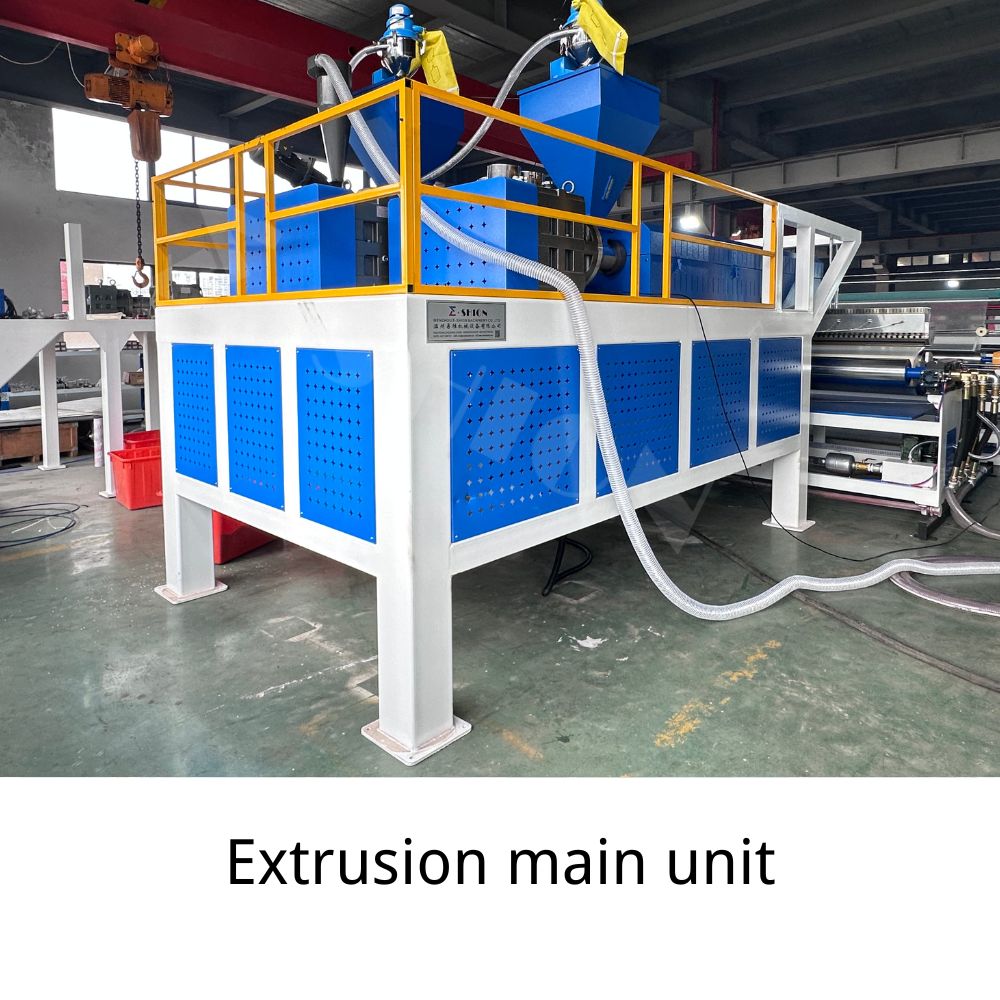

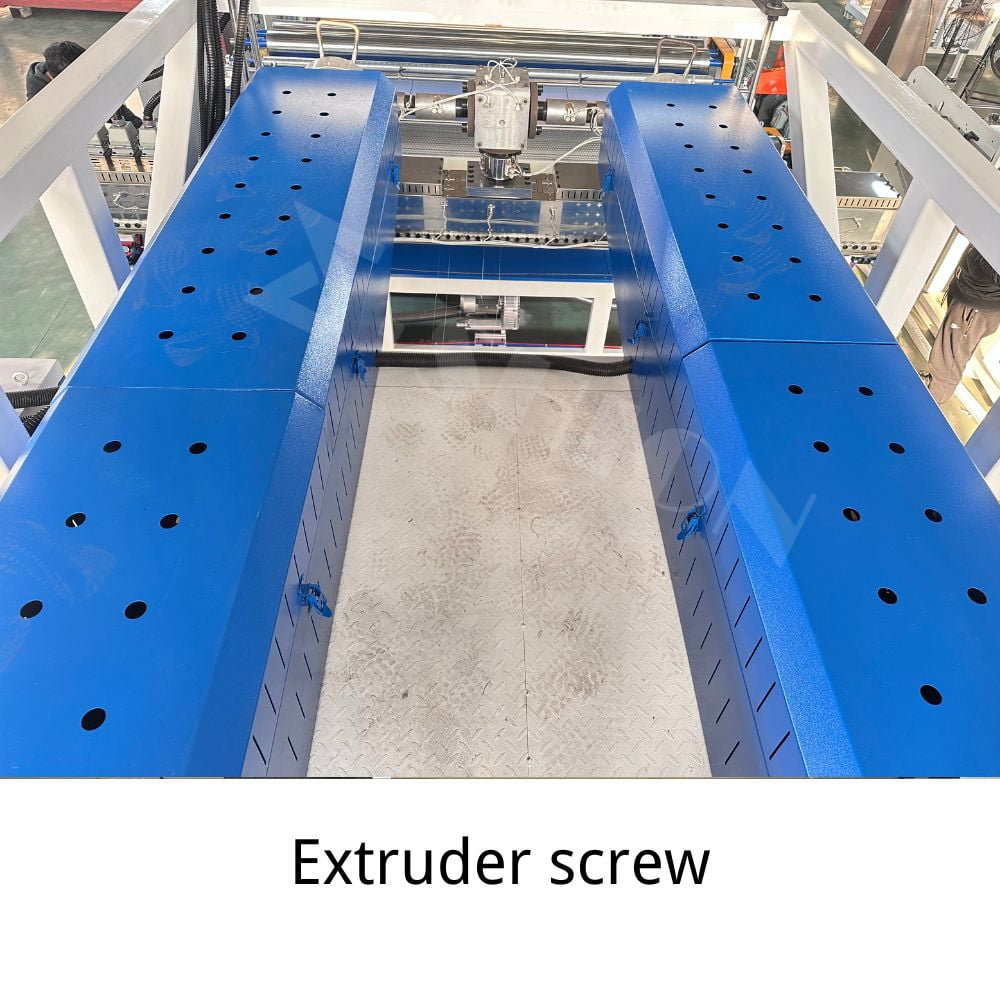

| Bubble Layer Unit | 55KW Motor | 105mm diameter screw |
| Base Layer Unit | 45KW Motor | 95mm diameter screw |
| Coating Layer Unit | 37KW Motor | 90mm diameter screw |
| Max Finished Width | 3000mm | Customizable for various roll sizes |
| Max Winding Diameter | 1300mm | High-capacity industrial rolls |
| Extrusion Uniformity | 5% | Ensures consistent thickness and quality |
| Total Power | 190 KW | Optimized for energy efficiency |

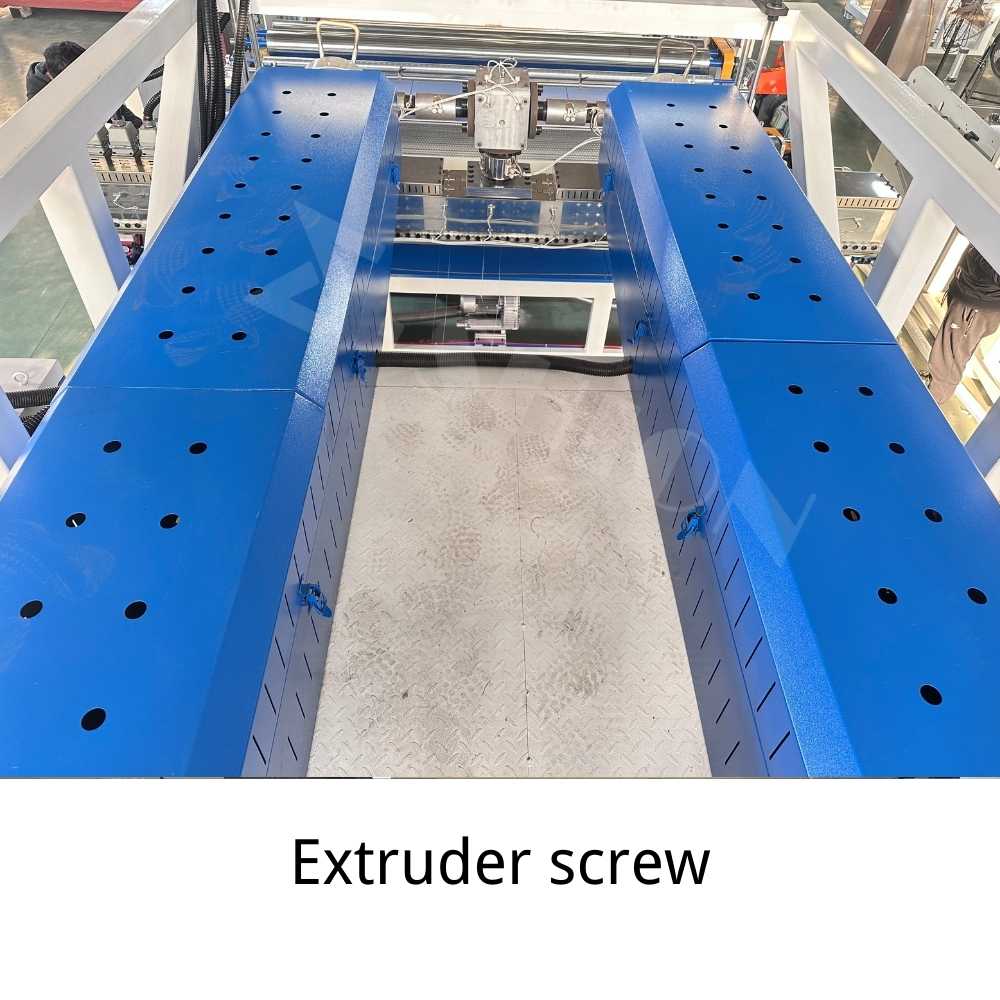

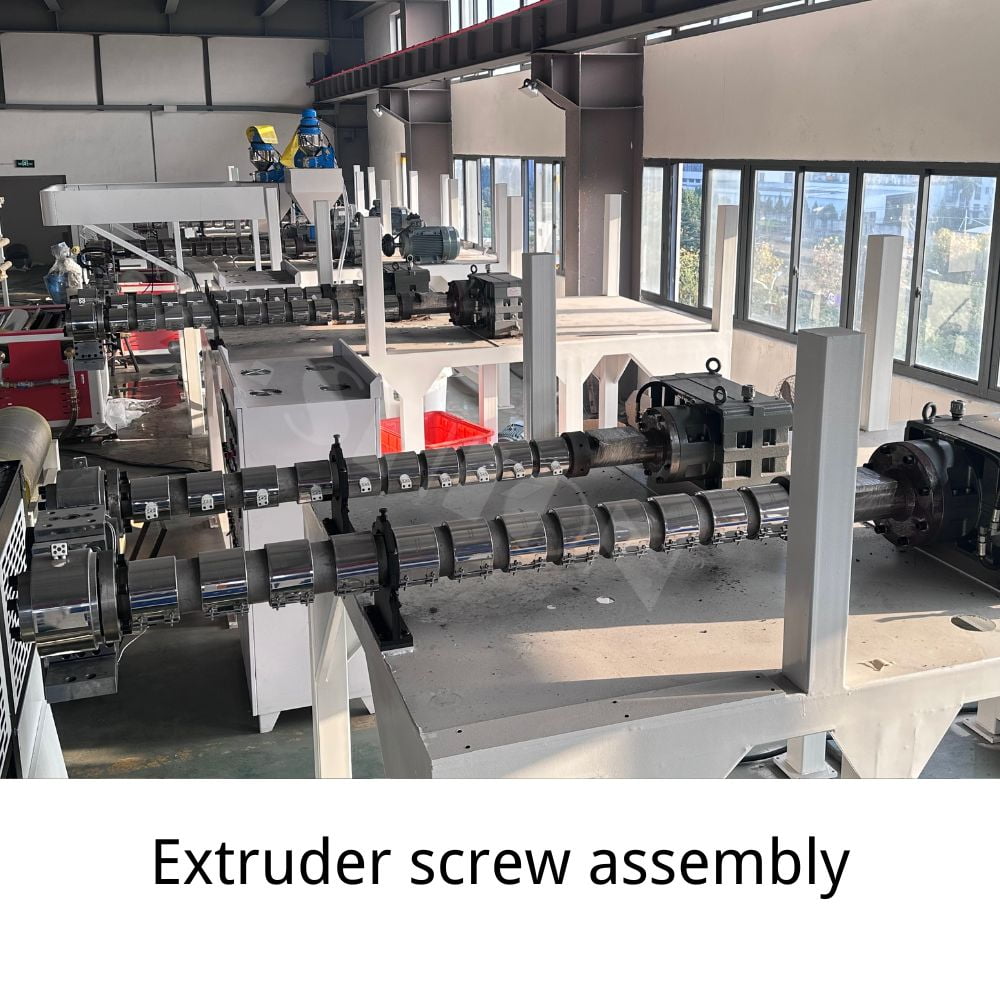

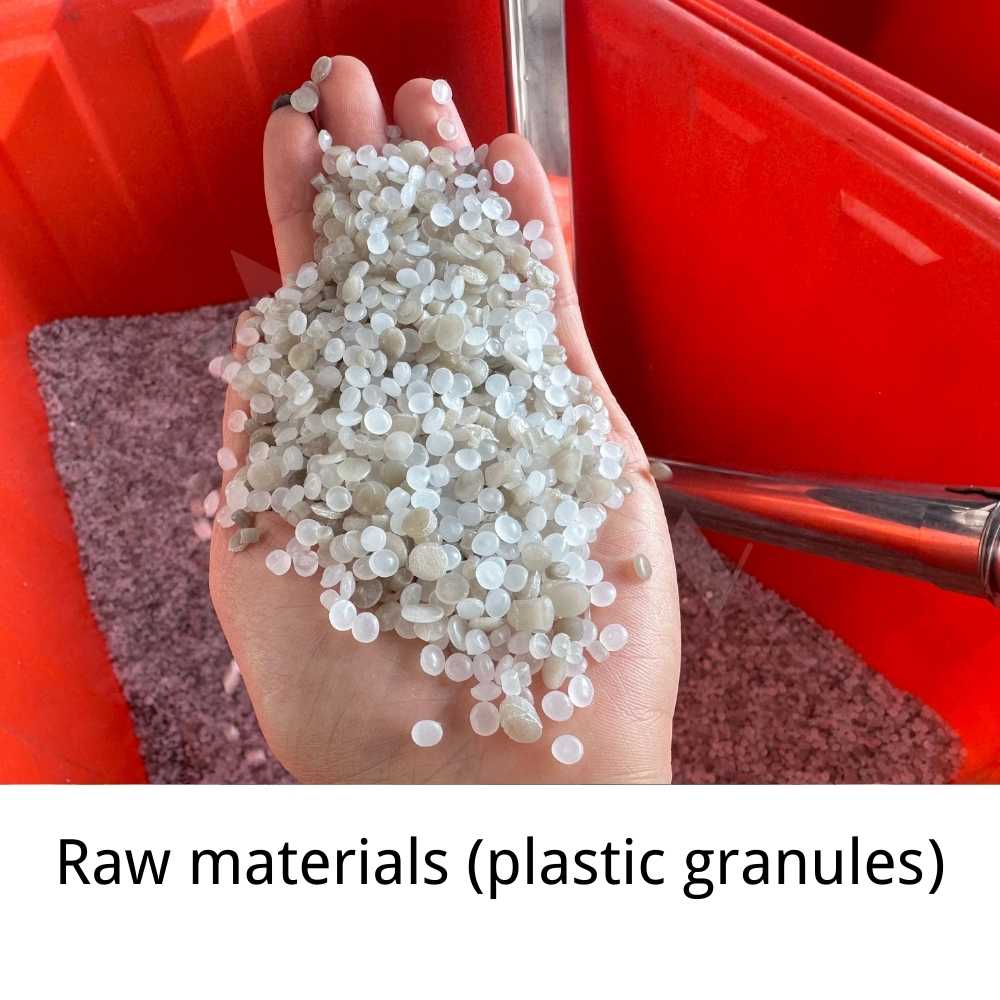

The screw L/D ratio of 35:1 ensures optimal plasticization, meaning the raw LDPE pellets are melted and mixed perfectly, resulting in bubbles that are clear, strong, and difficult to pop.
Key Features of Our Air Bubble Film Machine
1. Precision Engineering with 718 Mold Steel

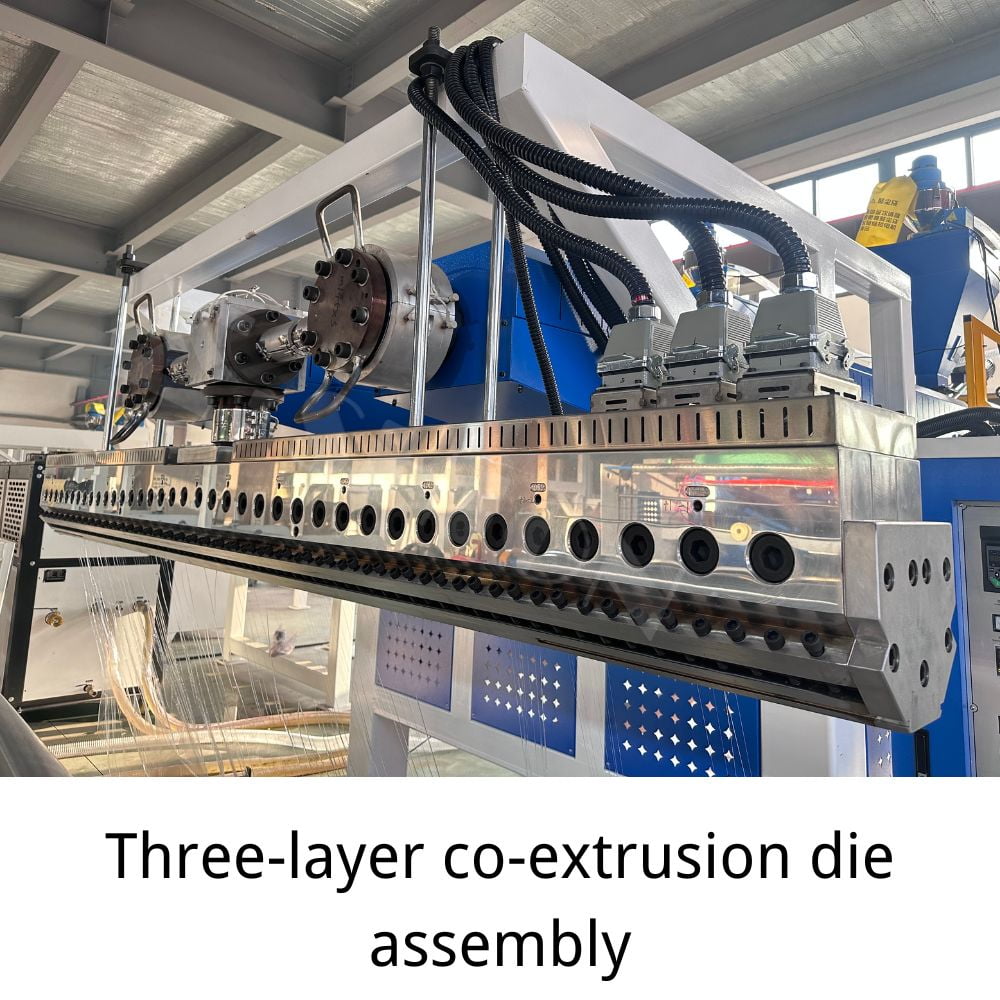

The die head is the “soul” of the bubble film machine. We utilize 718 mold steel, which undergoes hard chrome plating. This process results in a high-hardness, anti-corrosive surface that ensures the melted plastic flows smoothly and maintains a consistent thickness across the entire 3000mm width.

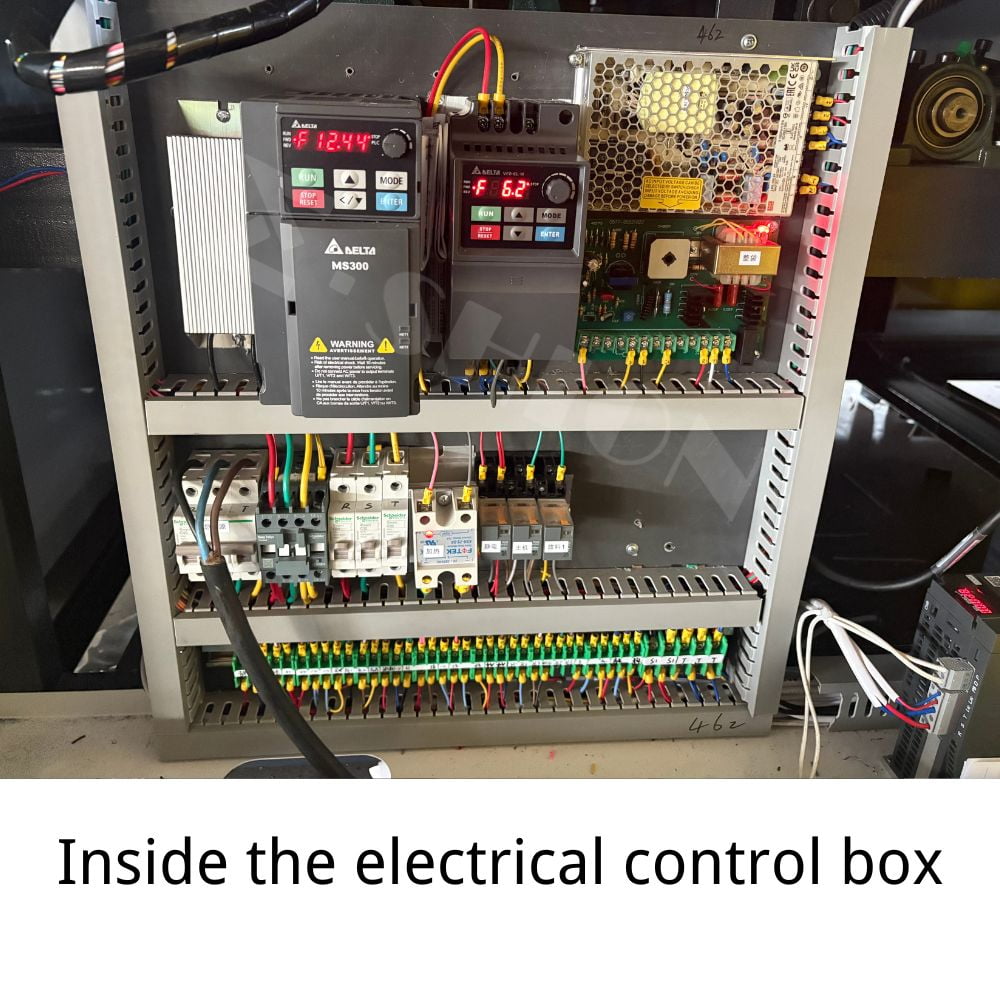

2. Advanced PLC and Touch Screen Control

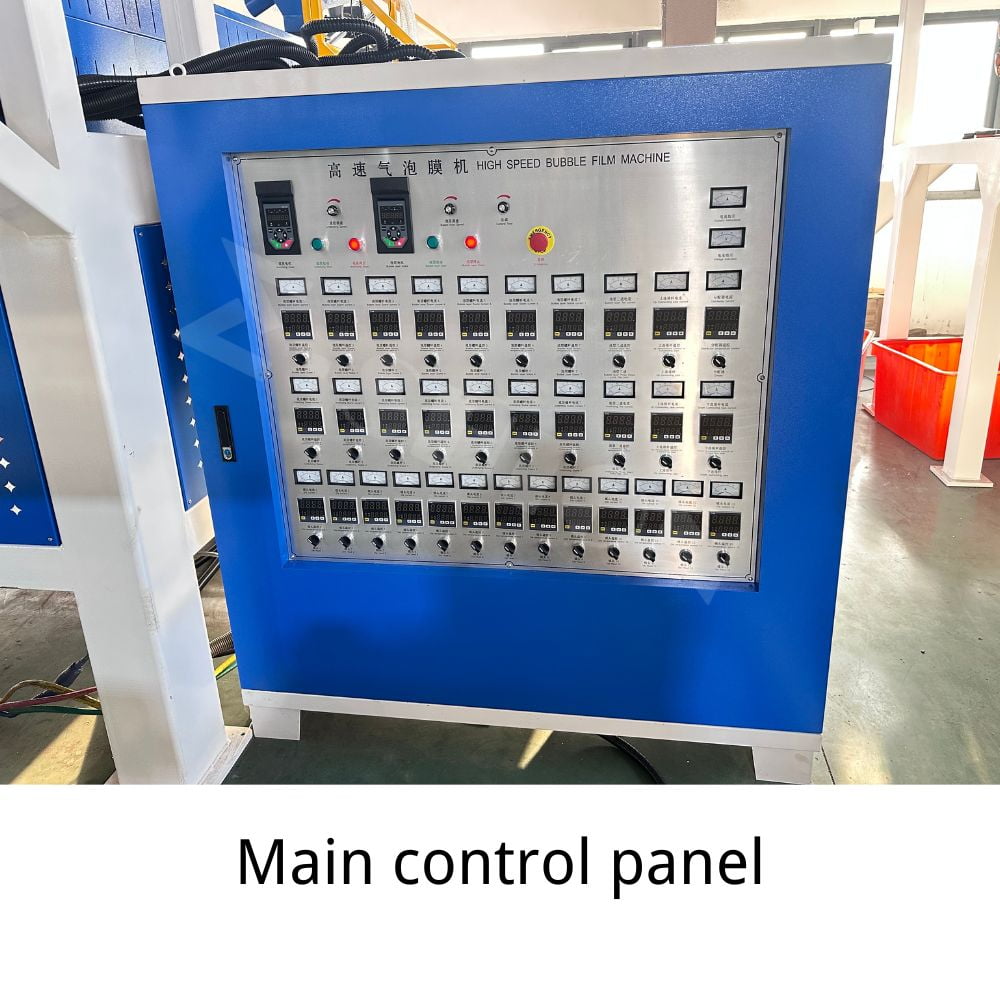

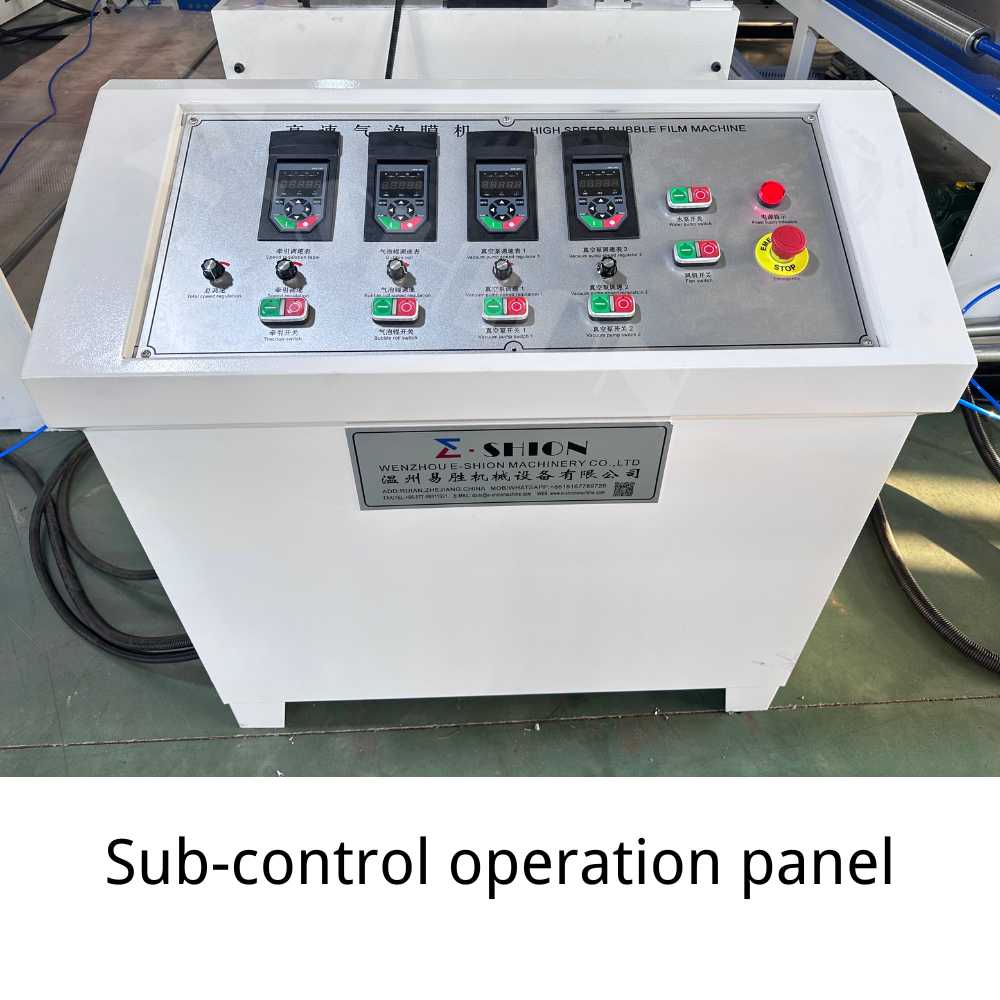

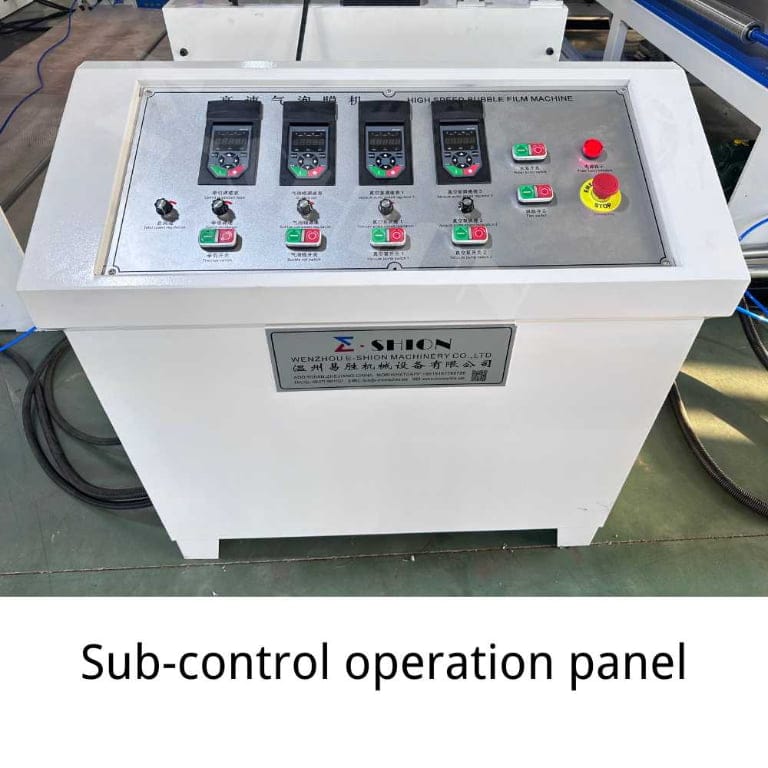

Modern manufacturing requires data-driven precision. Our air bubble film machine is equipped with a centralized PLC control system and a full-color touch screen interface. Operators can monitor temperature, screw speed, and tension in real-time. Digital vector frequency converters ensure that the motors run at peak efficiency, reducing energy waste and mechanical wear.
3. Fully Automatic Winding and Cutting

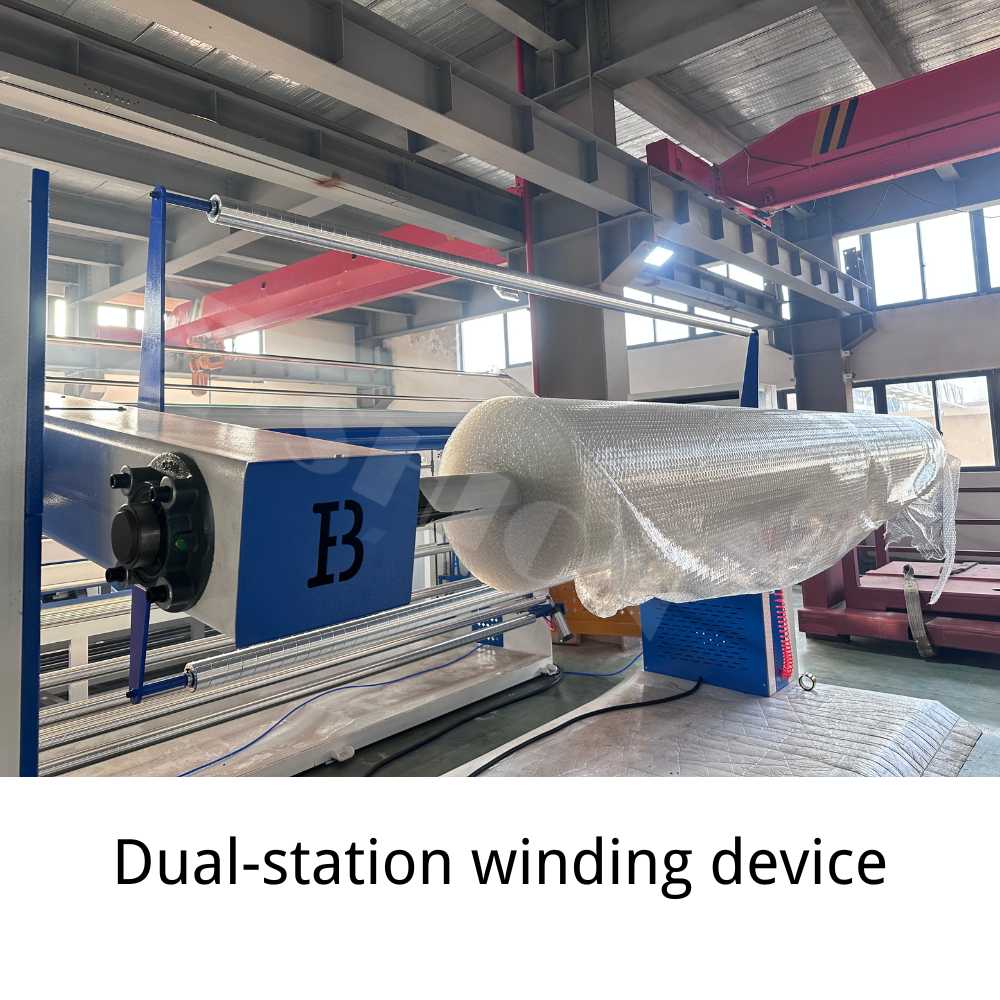

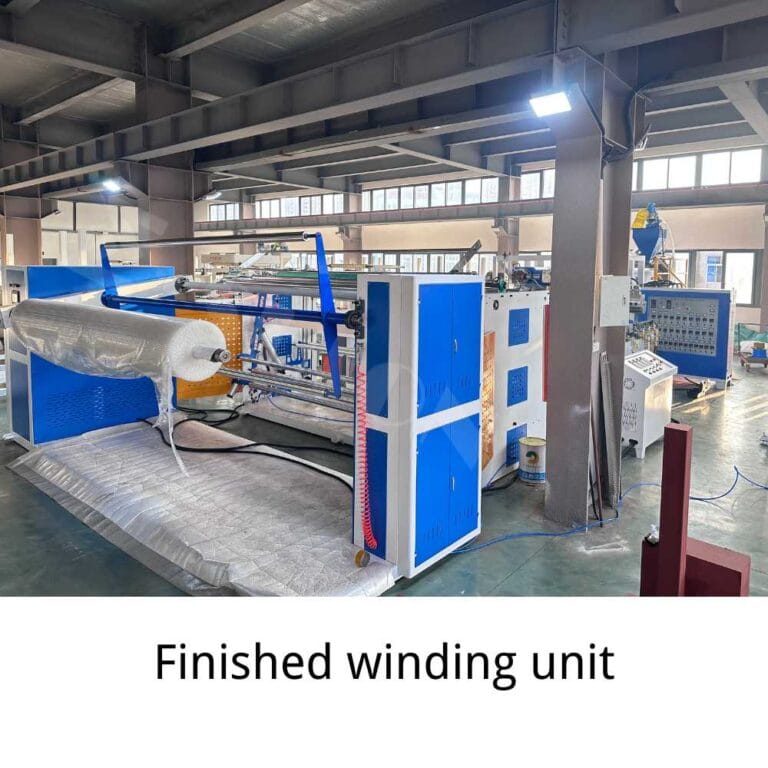

To maximize uptime, the machine features a dual-position automatic arm winder. When a roll reaches its maximum diameter (up to 1300mm), the “flying knife” system automatically cuts the film and begins winding a new roll without the need for adhesive tape. This significantly reduces labor costs and increases daily throughput.
4. Composite Material Versatility

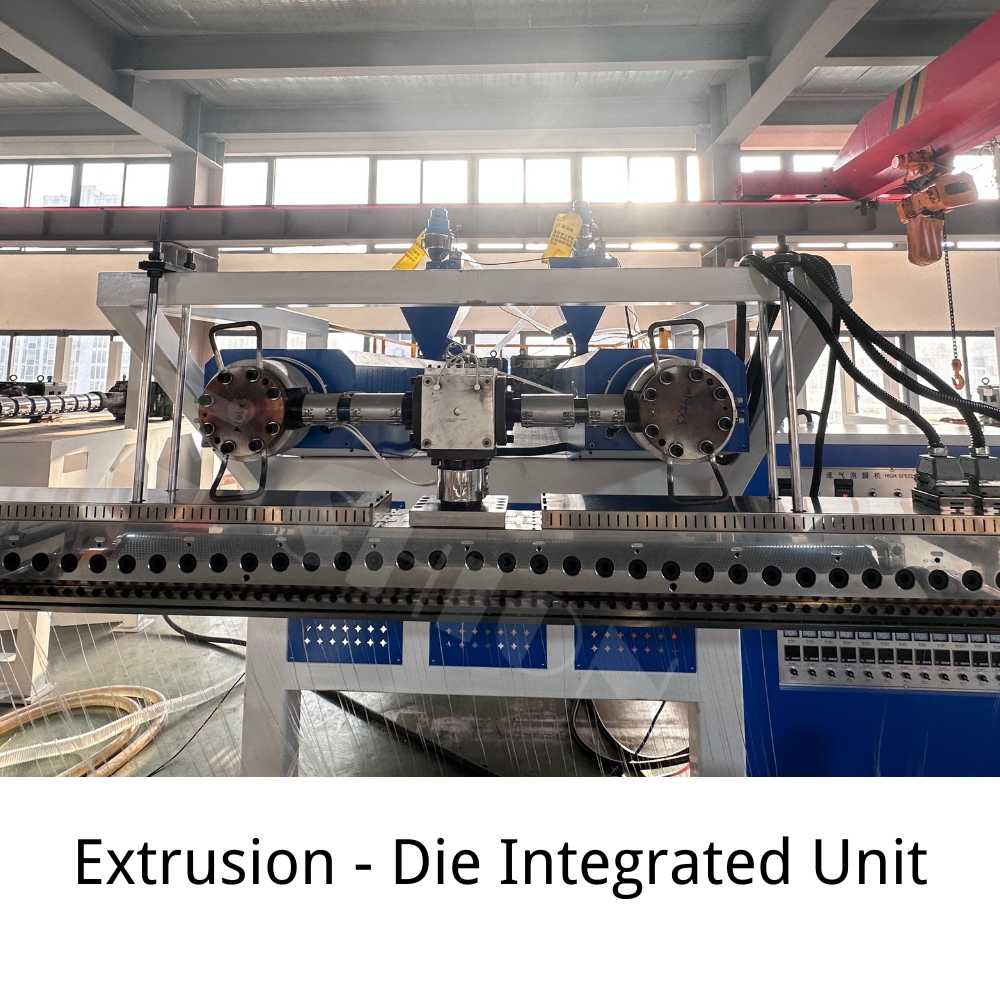

This isn’t just a standard bubble film machine; it is a composite laminating powerhouse. By using the secondary die head to extrude a coating layer, the machine can bond bubble film to aluminum foil or Kraft paper in a single pass. This is ideal for producing thermal mailers used in food delivery or heavy-duty electronics packaging.
Applications of Air Bubble Film in Modern Industry
The products generated by an air bubble film machine are found in almost every sector of the economy:
- E-commerce Logistics: The primary use for express bags and padded mailers.
- Electronics: Anti-static bubble films protect sensitive circuit boards from ESD and impact.
- Construction: Aluminum-coated bubble film is used as high-efficiency radiant barrier insulation for roofs and walls.
- Furniture & Glass: Large 3000mm rolls are used to wrap fragile items during international shipping.
Why Partner With Our Factory?
When you purchase an air bubble film machine, you are investing in a long-term partnership. Our factory, located in Ruian City, Zhejiang Province (near Shanghai), is a global leader in plastic machinery.
- Rapid Delivery: While the industry standard is 45 days, our optimized production line allows us to deliver urgent orders in as little as 10 days.
- Industry-Leading Warranty: We offer an 18-month warranty—6 months longer than the industry average. If any manufacturing defect occurs, we express-ship parts to you immediately.
- On-Site Installation: Our engineers travel globally to set up your bubble film machine and provide comprehensive training for your staff, ensuring you hit your ROI targets quickly.
Frequently Asked Questions (FAQ)
Q: Can this bubble film machine produce different bubble sizes?

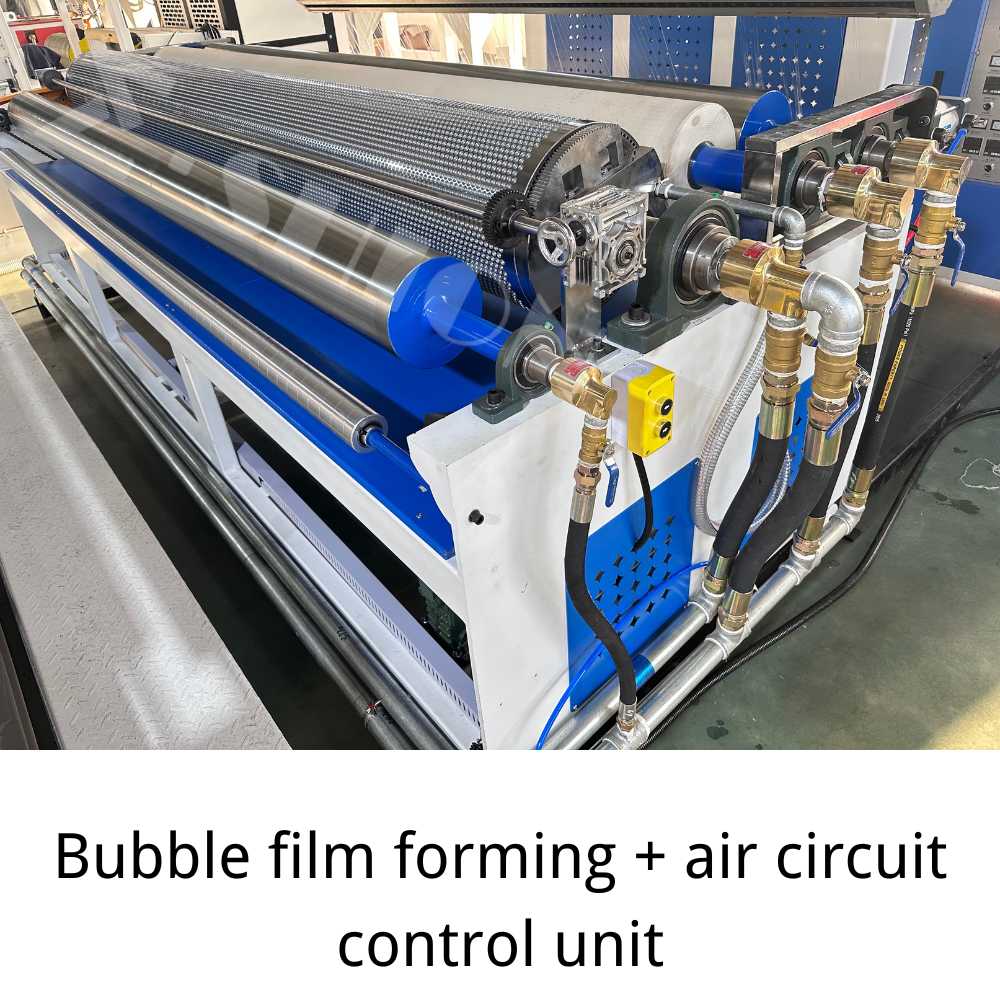

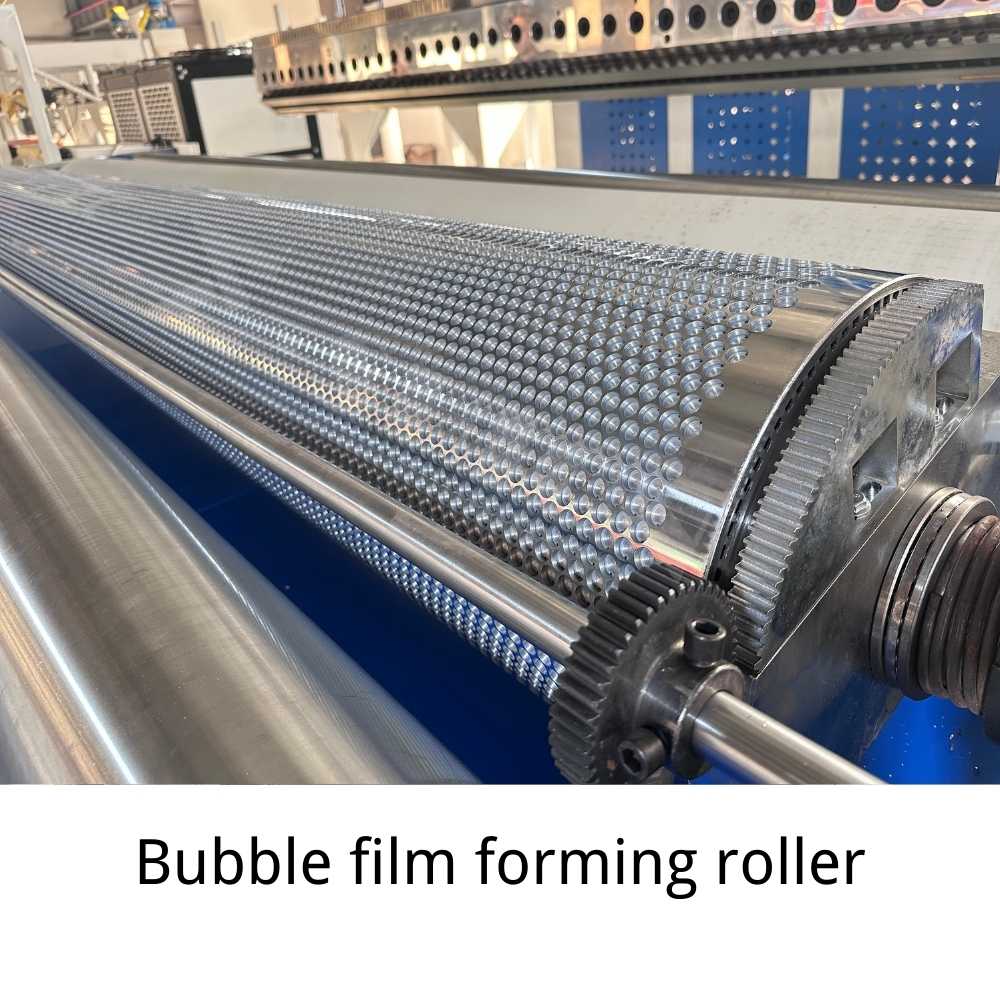

A: Yes. By changing the bubble forming roller, you can produce various bubble diameters (usually 6mm, 10mm, 20mm, or 25mm) to suit different packaging needs.
Q: Is it difficult to switch between different materials like aluminum film and pearlescent film?
A: Not at all. The dual-position unrolling stands with automatic tension control make switching material rolls efficient, allowing you to move from one product type to another with minimal downtime.
Q: What are the space requirements for the air bubble film machine?
A: The machine dimensions are 13m × 7m × 3.8m. We recommend a factory space with at least 4.5 meters of ceiling height to allow for proper ventilation and maintenance access.
Q: How do you handle shipping and protection?
A: Every air bubble film machine is treated with anti-corrosion oil and wrapped in heavy-duty plastic film. We also offer optional wooden crate packaging for extra protection during long-distance sea freight.
Conclusion
The 3-layer co-extrusion air bubble film machine is an essential asset for any business looking to lead in the protective packaging market. With a 450 KG/h output and the ability to create complex composite materials, it offers the perfect balance of speed, durability, and versatility.
