Film Blowing Machines for
Plastic Bag Manufacturing
Produce Shopping Bags · Courier Bags · Garbage Bags · Agricultural Films
- Shopping Bags
- Courier / Express Bags
- Garbage Bags
- Agricultural Films
- Food Packaging Films
Looking For A Reliable Film Blowing Machine Supplier?
We address the real production challenges that plastic film manufacturers face every day.
Low Production Efficiency?
High-output screw design with optimized L/D ratio improves production capacity by 20%–40%. Multi-layer co-extrusion maximizes throughput per hour.
Poor Film Quality?
Precision die head, automatic tension control, and IBC bubble cooling ensure uniform film thickness within ±2% tolerance across the full roll width.
High Energy Consumption?
Energy-saving servo motor system and optimized barrel heating reduce total power consumption by 15%–25% compared to conventional drives.
Frequent Machine Downtime?
Industrial-grade gearbox, hard-faced alloy screw, and all-brand electrical components (Schneider, Delta, Panasonic) ensure 24/7 continuous operation.
ABA Co-Extrusion Cuts Material Cost By Up To 30%
ABA (A-B-A) co-extrusion uses virgin material for outer layers and recycled or lower-cost resin for the core — delivering the same surface quality at significantly lower material cost.
| Comparison | ABA Co-Extrusion | Standard Monolayer |
|---|---|---|
| Material Cost | ↓ 30% Lower | Standard |
| Film Strength | High (recycled material) | Standard |
| Recycled Content | Up to 70% | < 20% |
| Surface Quality | Excellent (virgin outer layer) | Degrades with recycled content |
| Sealing Performance | Strong (virgin inner layer) | Standard |
| Investment Payback | 8-14 Months | 18-24 Months |
| Flexibility (material change) | High (3 layers, 2 materials) | Single material only |
| Best For | Shopping bags, garbage bags, packaging film | General packaging, low-cost film |
* Savings depend on local recycled resin pricing and output volume. Contact us for a customized cost analysis.
Complete Film Blowing Machine Solutions
From mini lab lines to industrial multi-layer co-extrusion systems — every machine is built to your film width, output and material requirements.

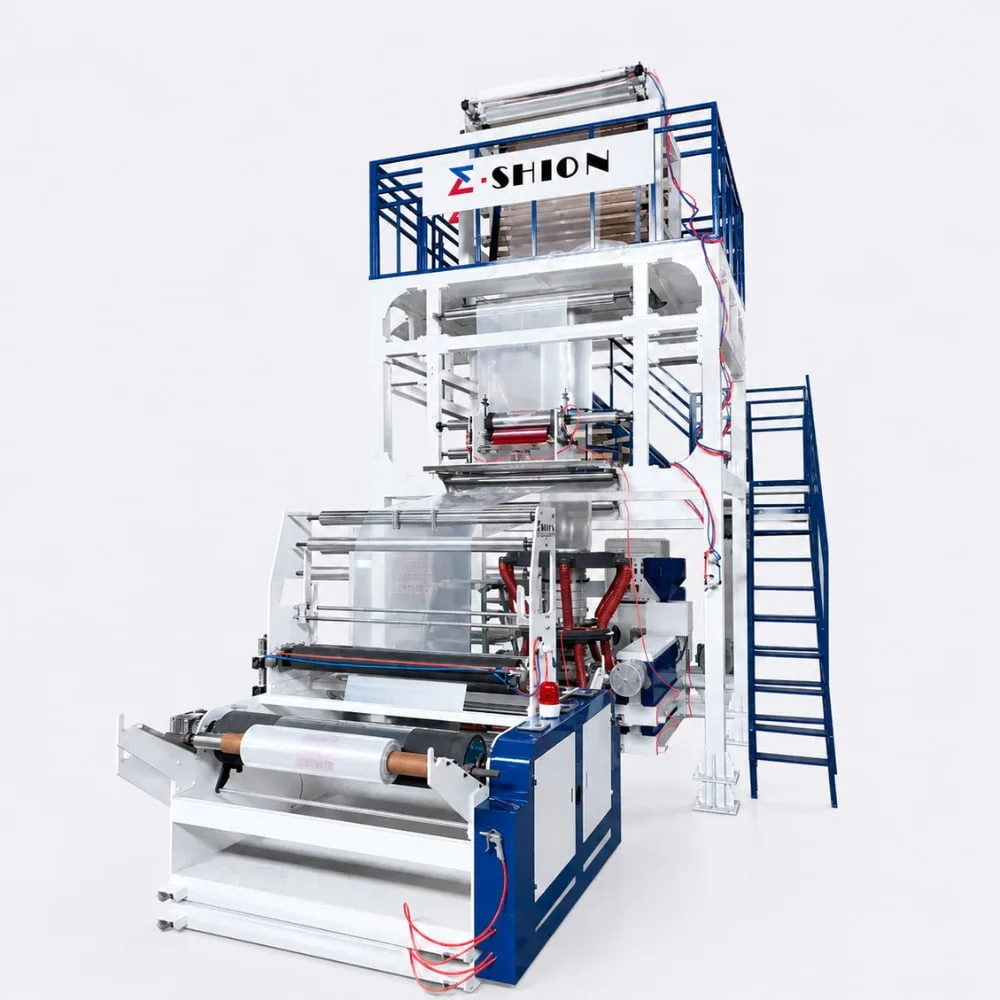

ABA Film Blowing Machine
A-B-A co-extrusion with virgin outer layers and recycled core. Cuts cost by 30%-50%.

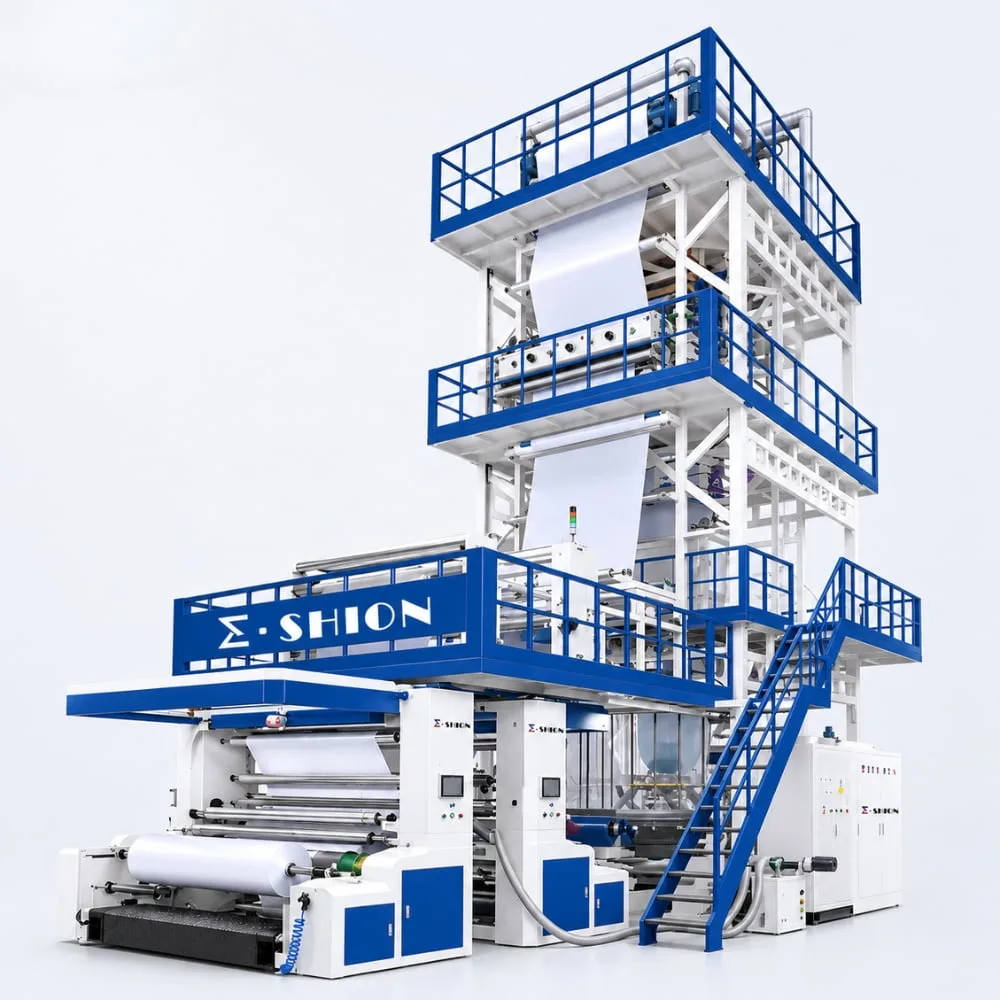

3 Layer Film Blowing Machine
Three-layer ABC co-extrusion with IBC cooling for high-barrier film.

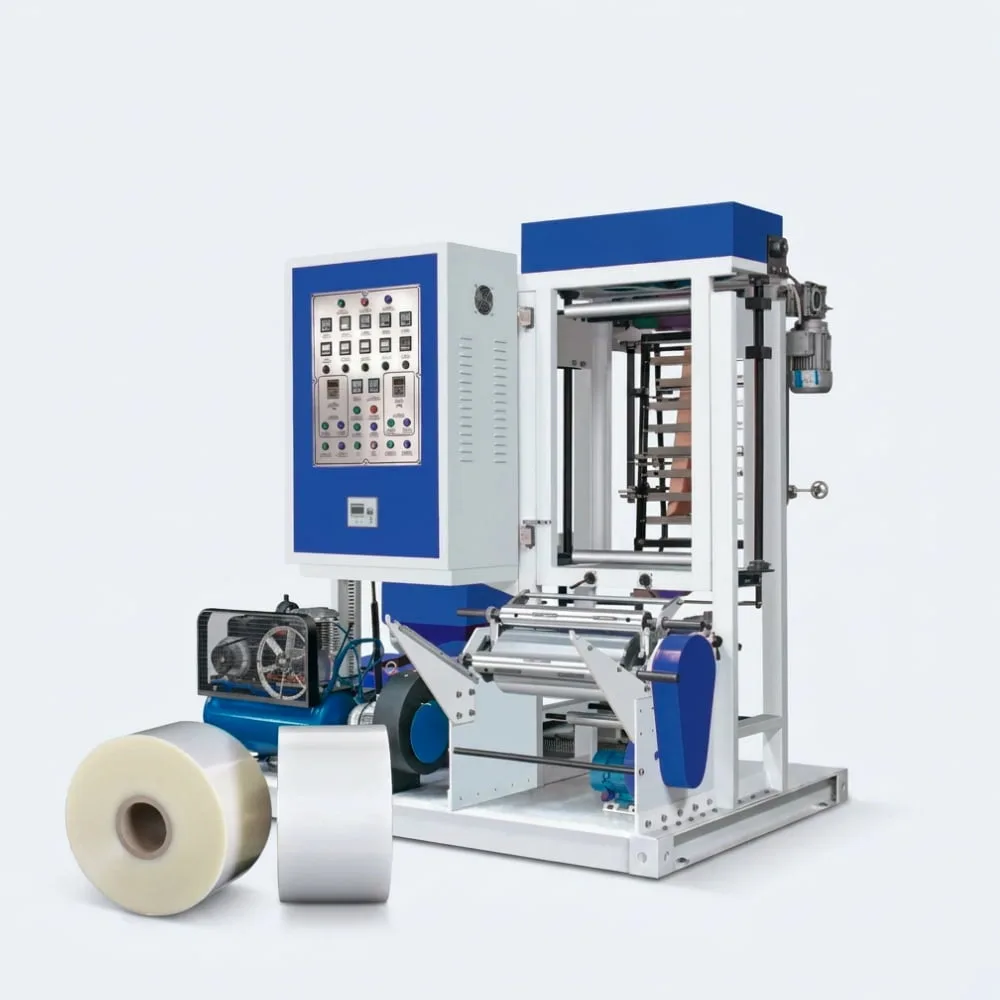

Mini Film Blowing Machine
Compact lab-scale extrusion for R&D and small-batch production.

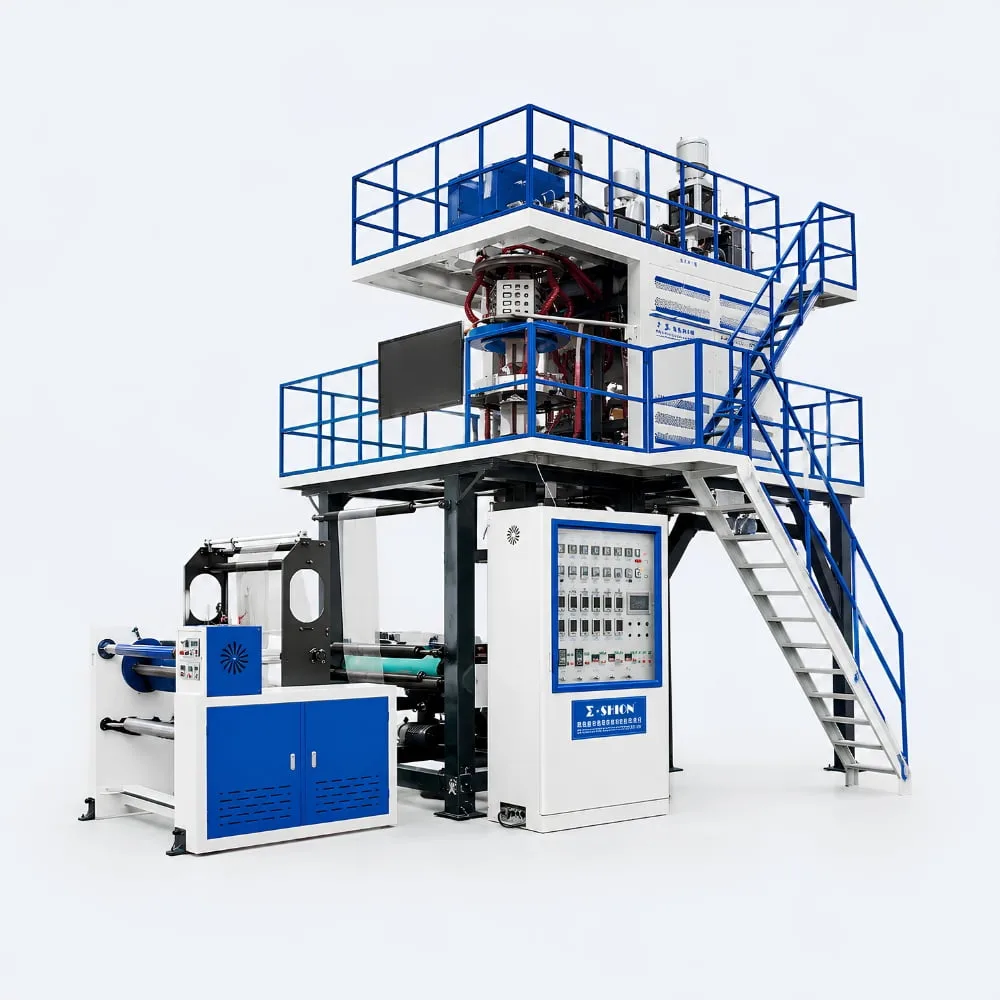

PP Film Blowing Machine
Specialized screw and water-cooling ring for high-clarity PP film.

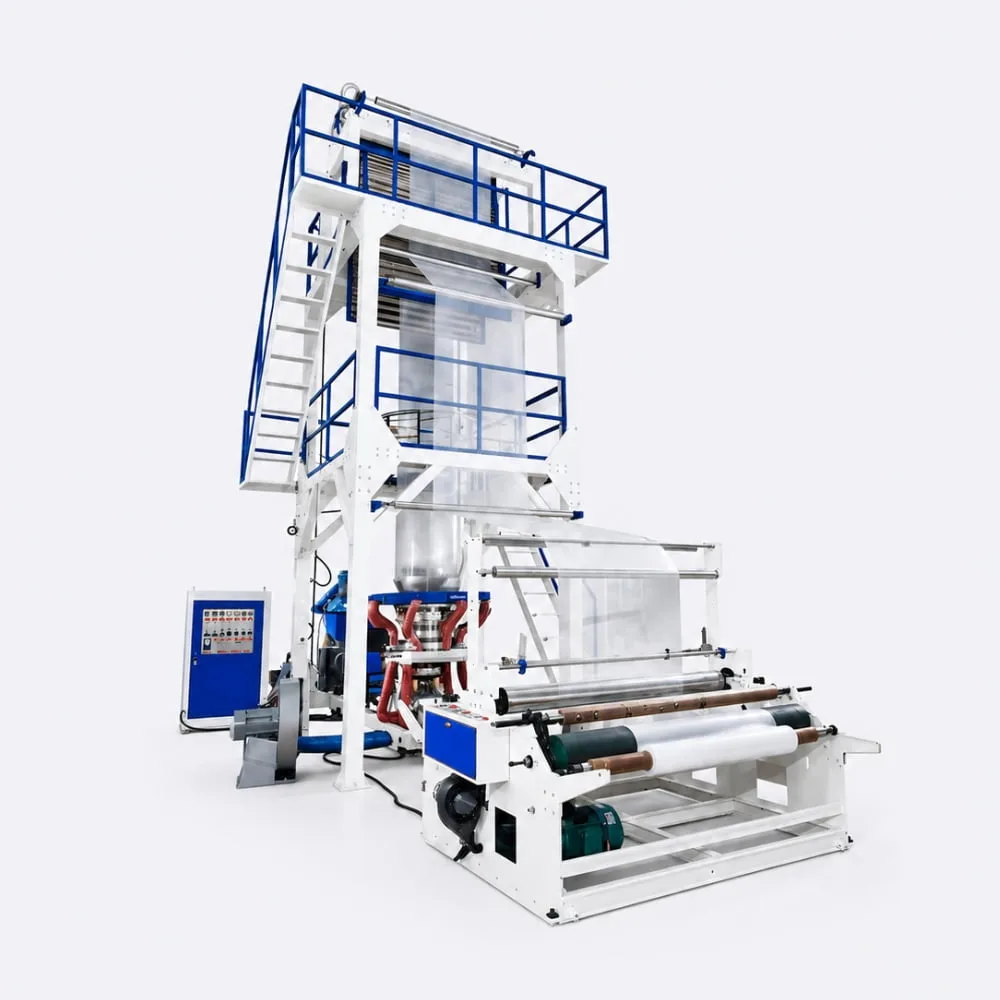

Monolayer Film Blowing Machine
Cost-effective single-layer extrusion. Best value for startups.
Why Choose E-SHION As Your Film Blowing Machine Manufacturer?
Two decades of blown film extrusion expertise — from factory production to global delivery and after-sales support.

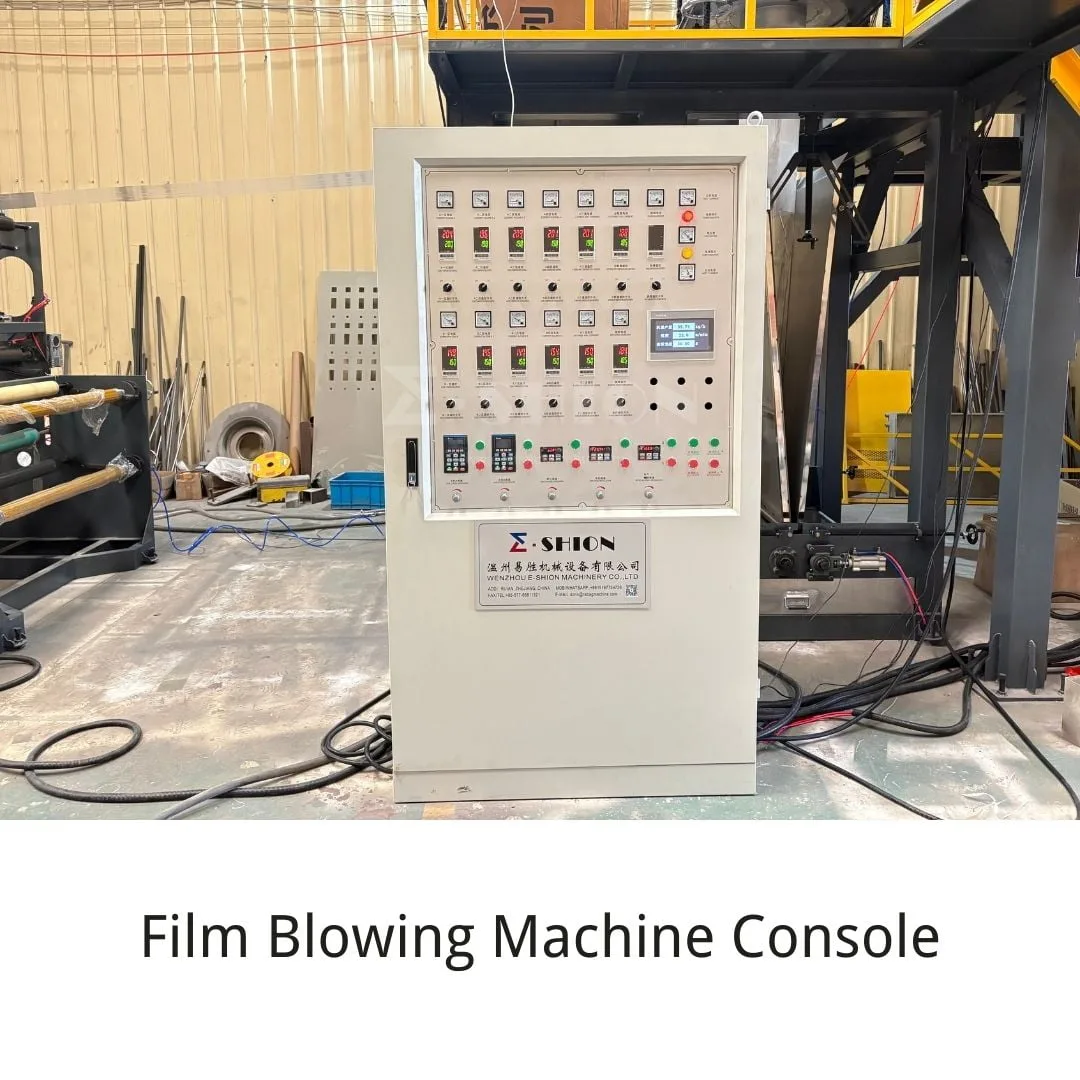

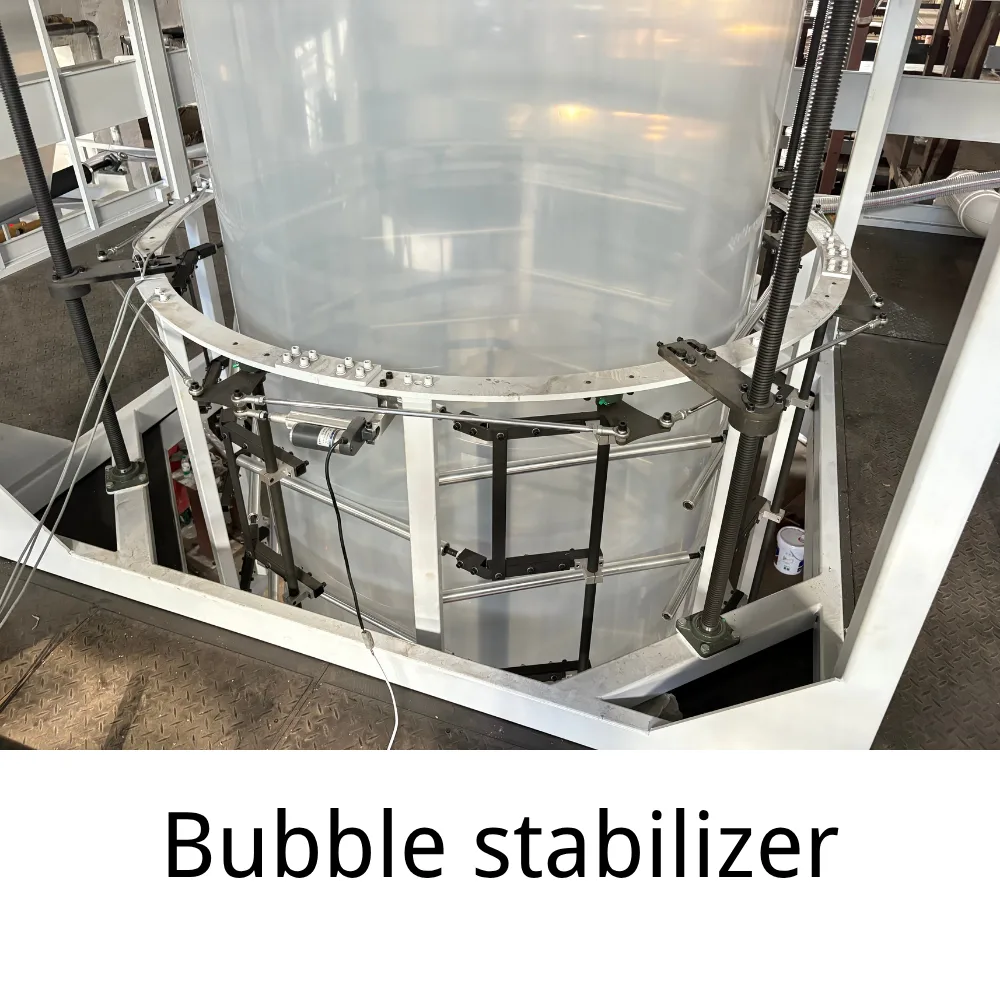

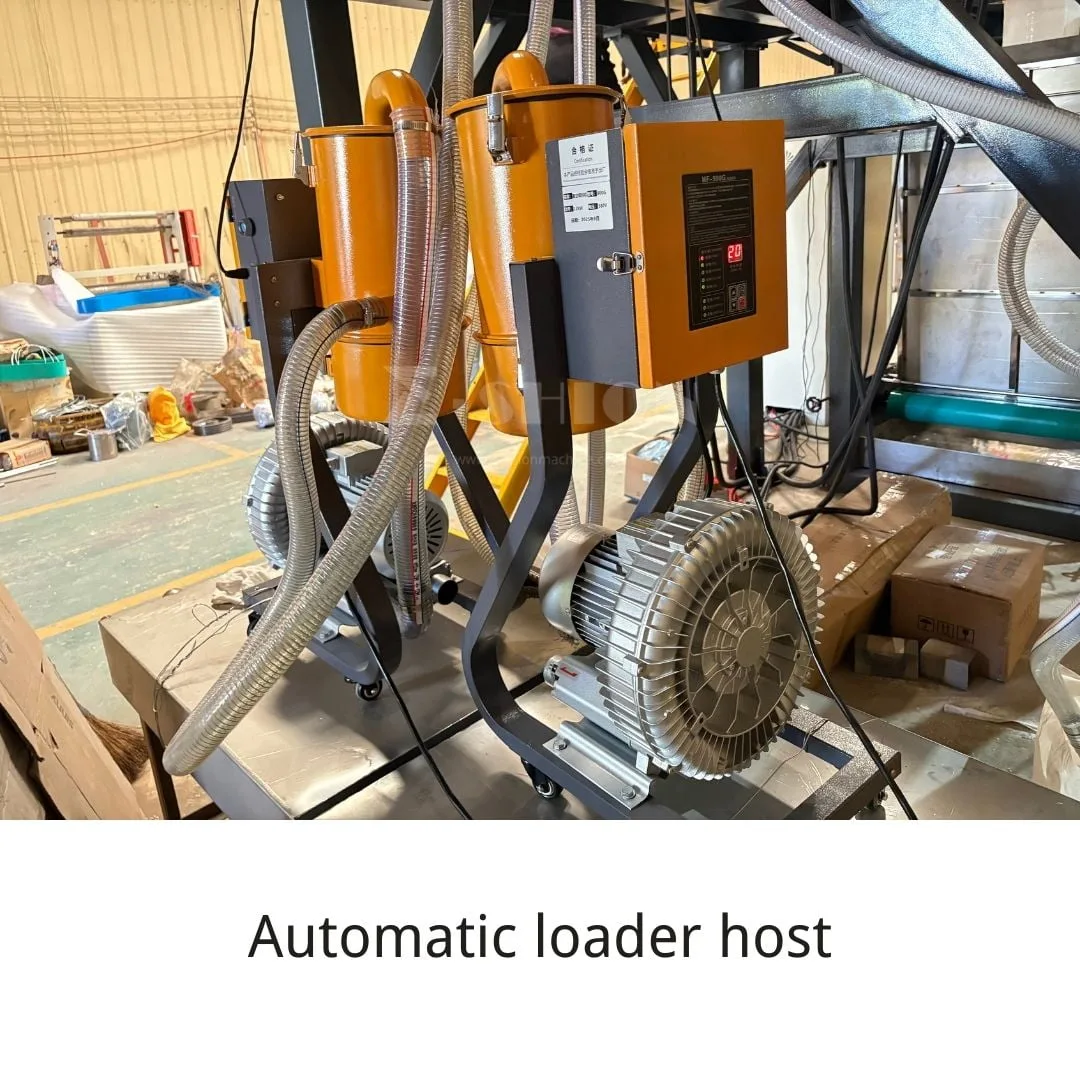

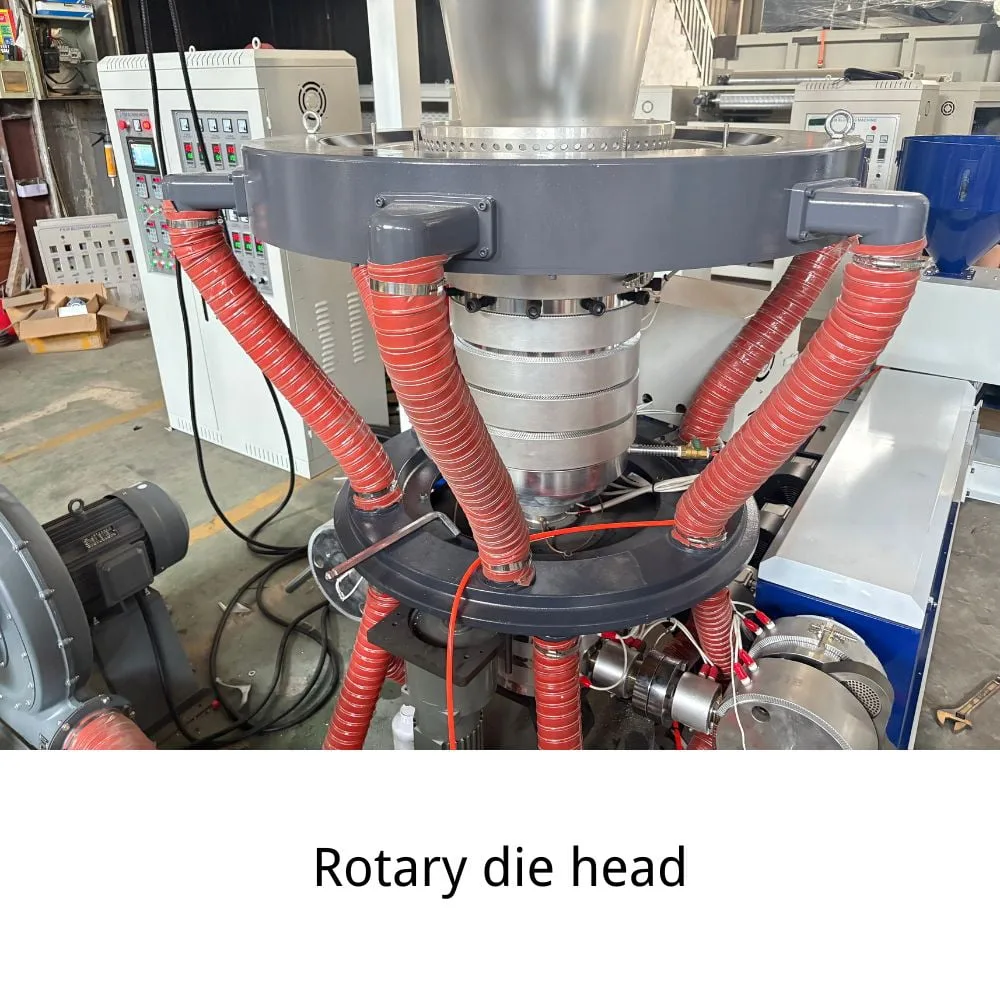

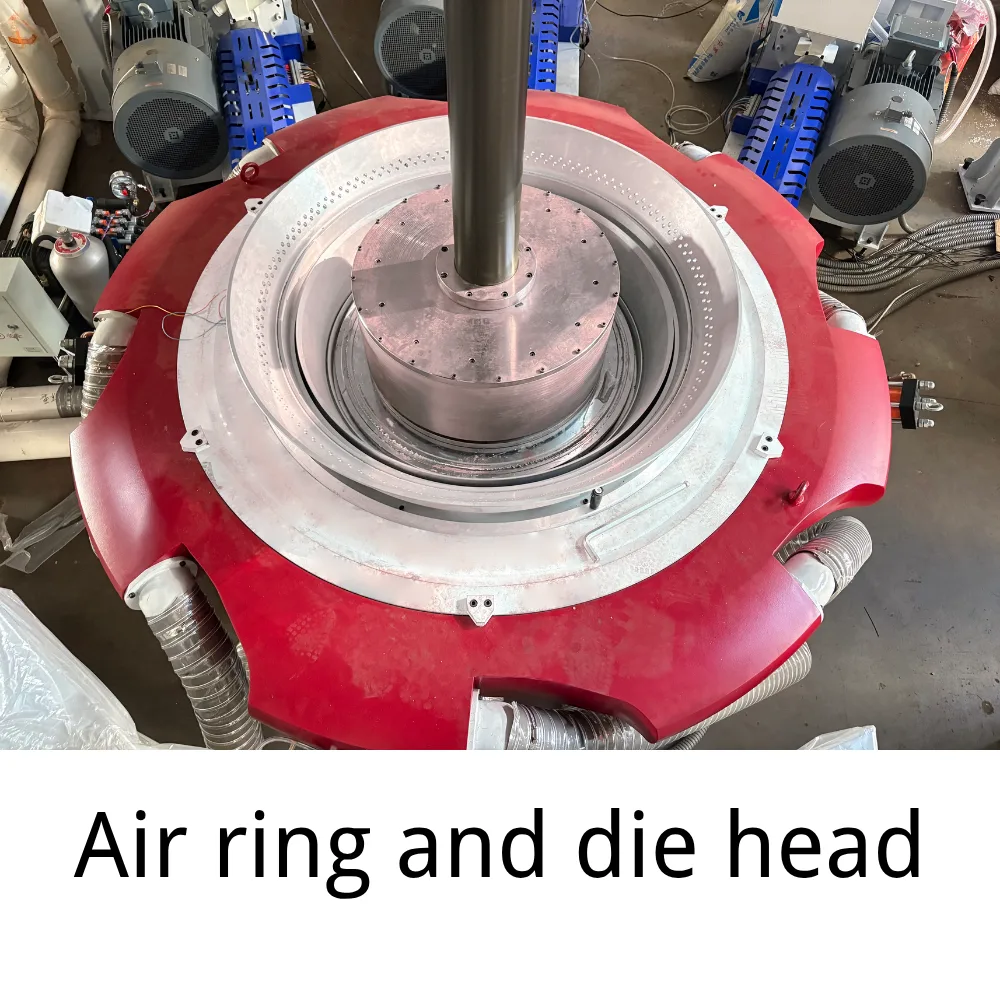

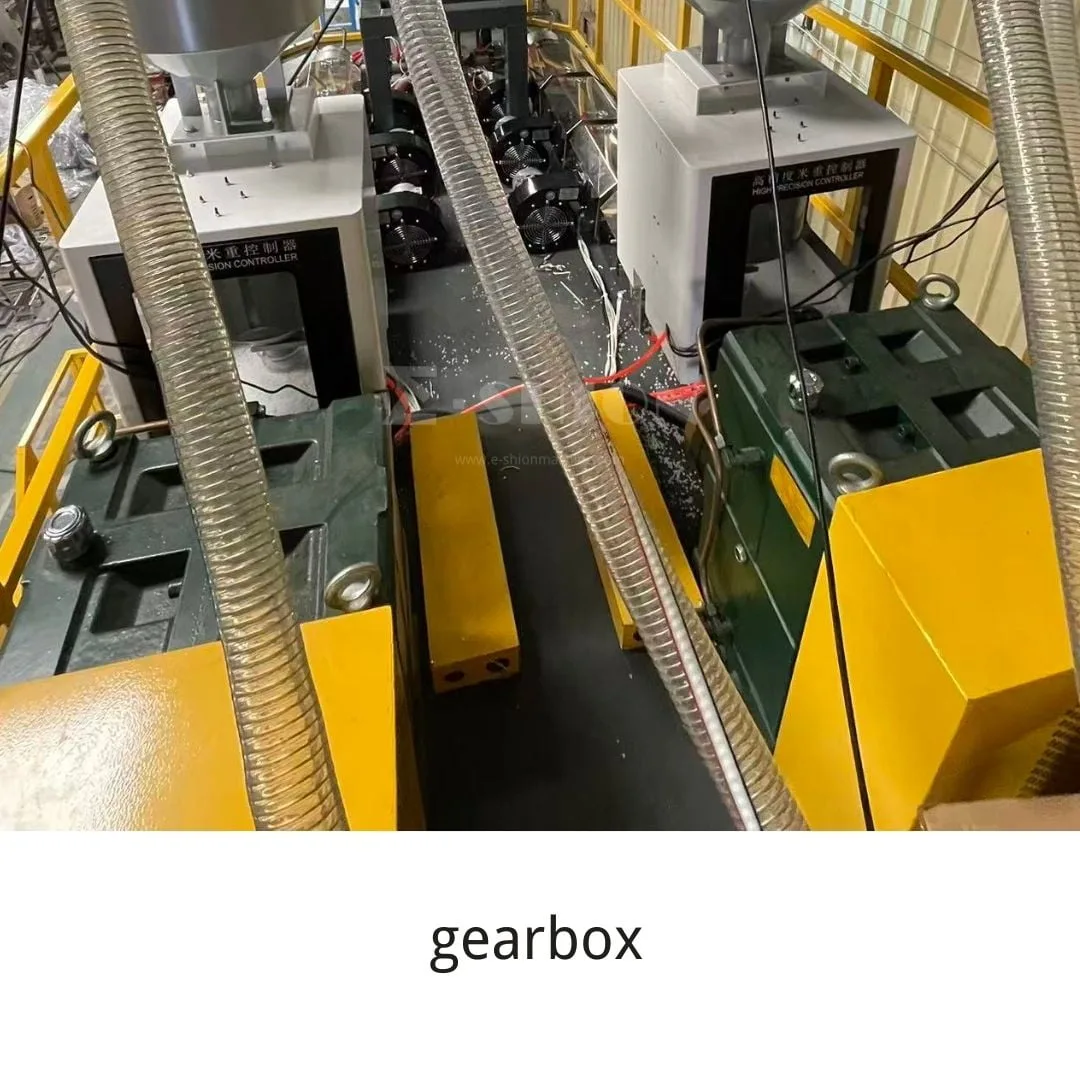

Precision Engineered Components
Every part of our film blowing machines is built for durability, precision and consistent film output.
Wide Range Of Film Applications
Our film blowing machines produce film for these packaging and industrial sectors.
Shopping Bag Film
Garbage Bag Film
Packaging Film
Agricultural Film

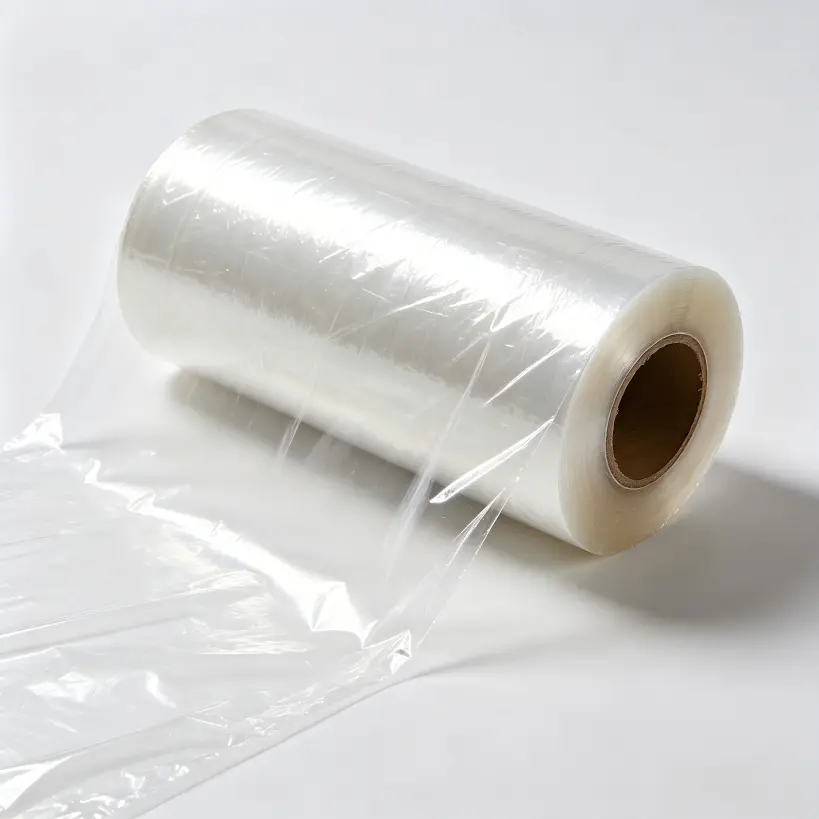

Stretch Film
Shrink Film
Bubble Film

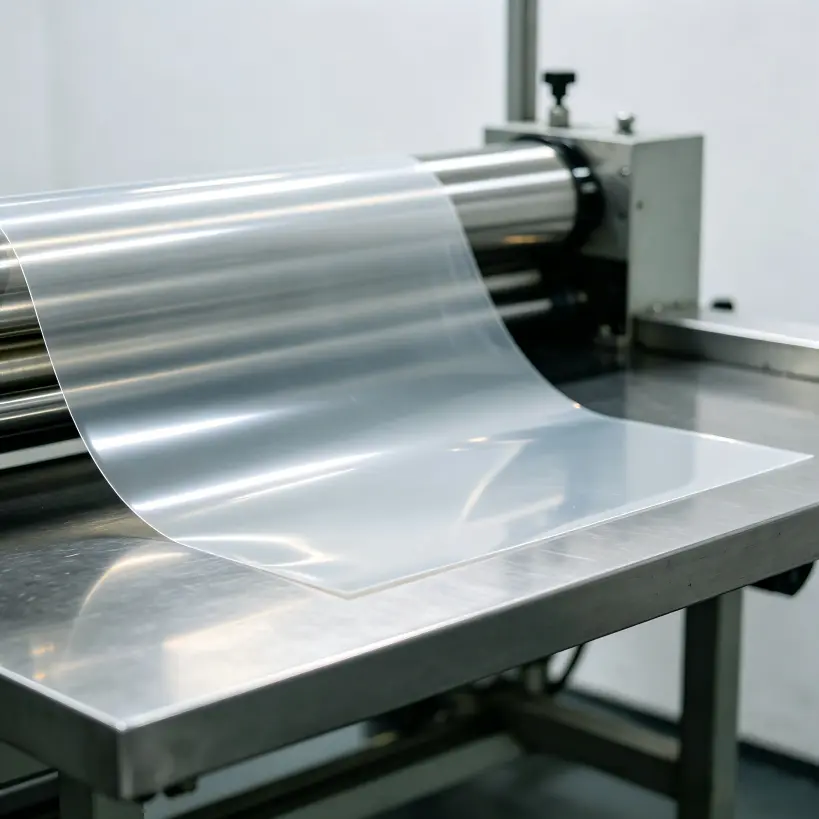

Industrial Film
How To Choose A Film Blowing Machine
Four key factors to consider before purchasing — match the machine to your production needs and get the fastest return on investment.
Determine Your Target Output (kg/h)
Your daily production volume decides the screw diameter. For 200-500 kg/day choose a 45-55mm screw. For 500-1000 kg/day choose 55-70mm. For 1000+ kg/day choose 70-120mm. An oversized machine wastes energy; an undersized one limits your growth.
Choose The Right Layer Configuration
Monolayer is best for low-cost general film (shopping bags, garbage bags). Choose ABA co-extrusion if you want to use 30-70% recycled material with virgin surface quality. Choose 3-layer ABC for high-barrier film (agricultural, food packaging, industrial uses).
Match Film Width To Your Bag Size
Lay-flat film width determines what bag sizes you can produce. For small bags (300-500mm) a 45-55mm die is sufficient. For medium bags (500-1000mm) use 55-75mm. For wide industrial film (1000-2500mm) choose 75-120mm with IBC internal cooling.
Select Material & Power Supply
Standard PE machines process HDPE, LDPE and LLDPE. PP requires a water-cooled barrier screw. Biodegradable materials need specialized temperature control. Always specify your local voltage (380V/220V/415V, 50/60Hz) so the machine arrives ready to run.
Trusted By Film Manufacturers Worldwide
Installed in 30+ Countries Worldwide — Real customer installations with measurable results.

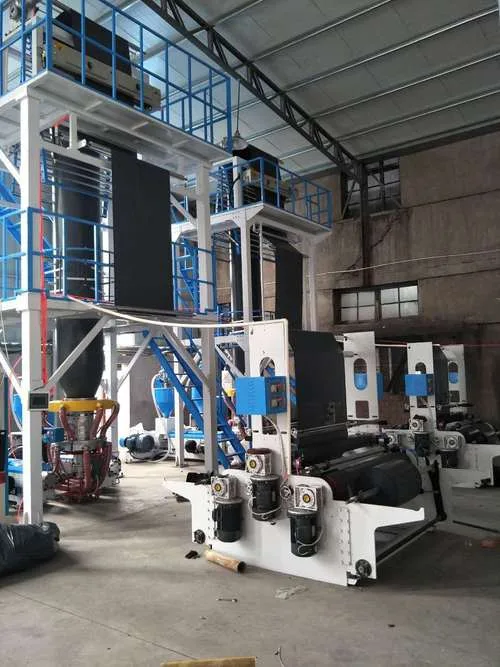

ABA Film Blowing Machine

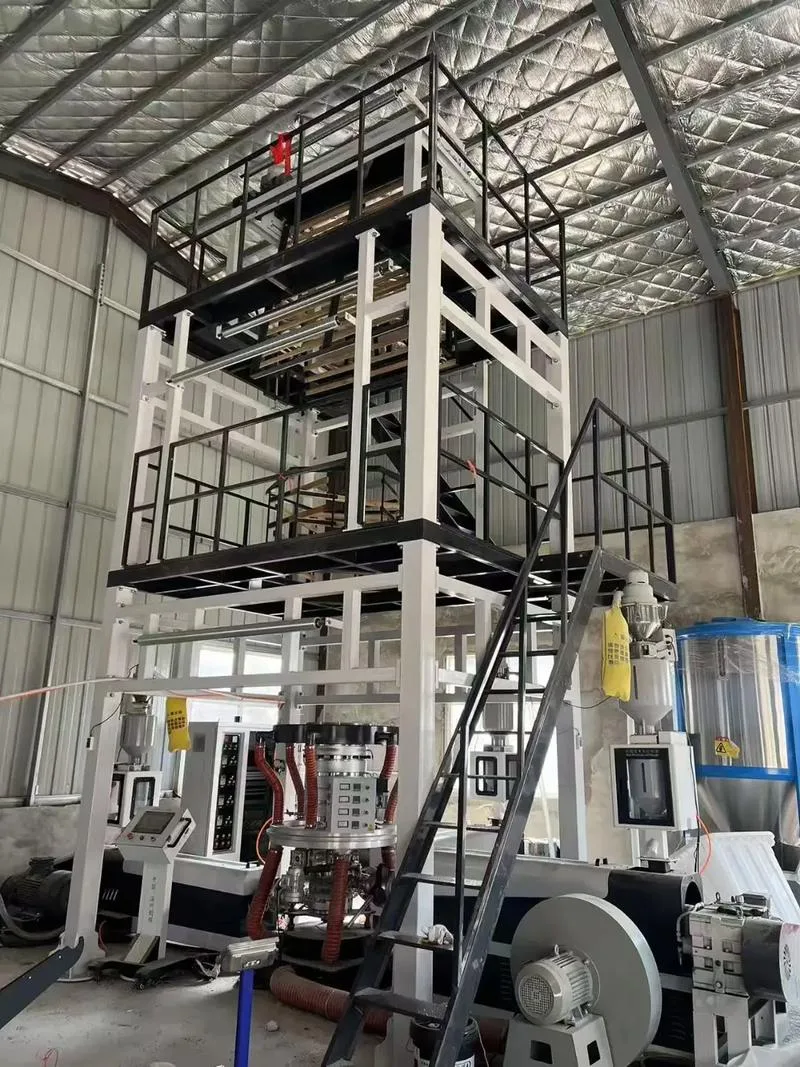

3 Layer Film Blowing Machine

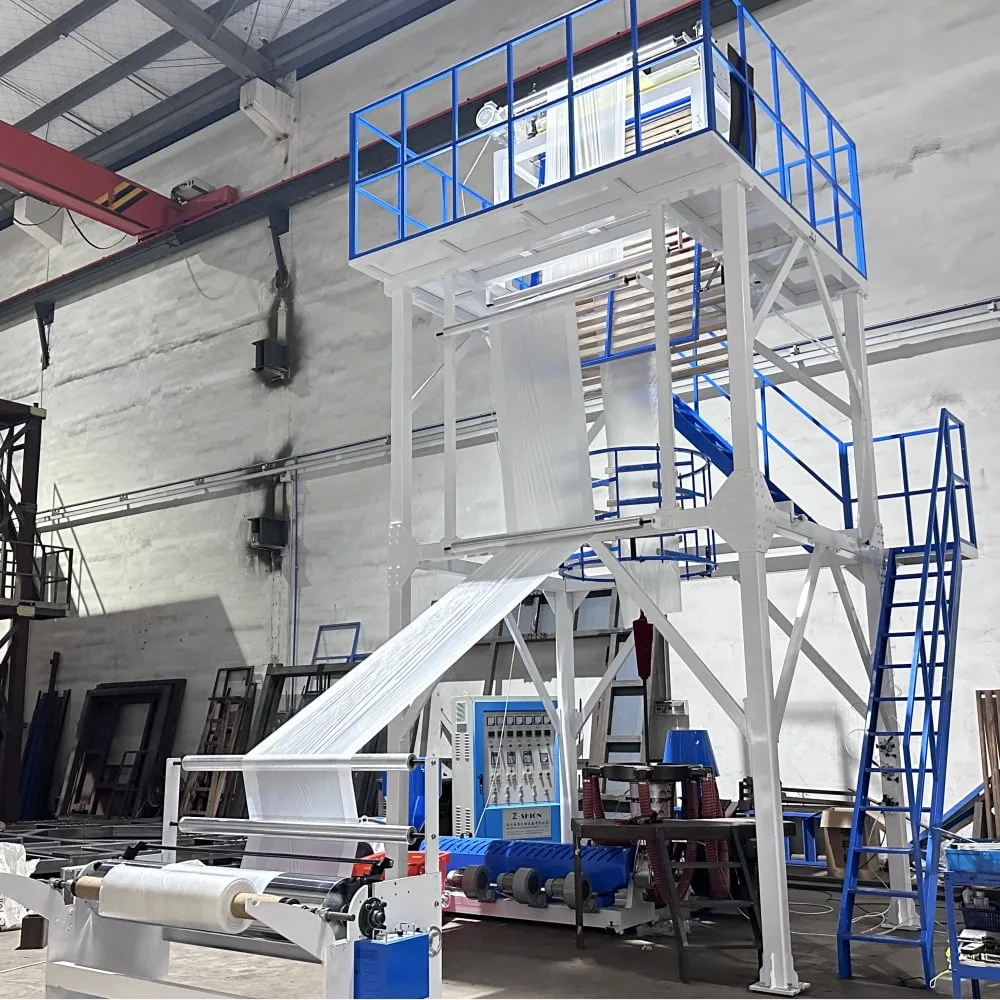

Monolayer Film Blowing Machine
Factory & Manufacturing Capability

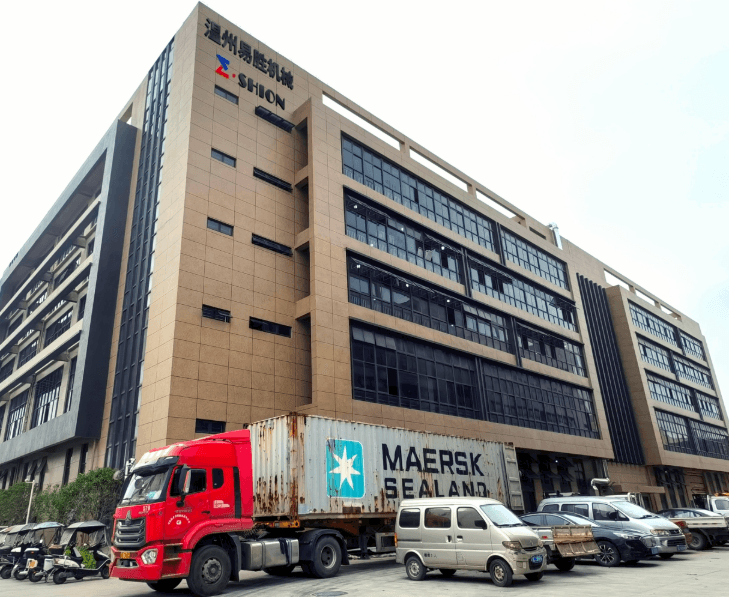

8,000 m² production base in Wenzhou, China — advanced equipment, skilled engineers, and strict quality control.
E-SHION Manufacturing Center
Full-range production facility with dedicated assembly, screw processing, electrical integration and quality inspection workshops — all under one roof to deliver consistent machine quality and on-time delivery.

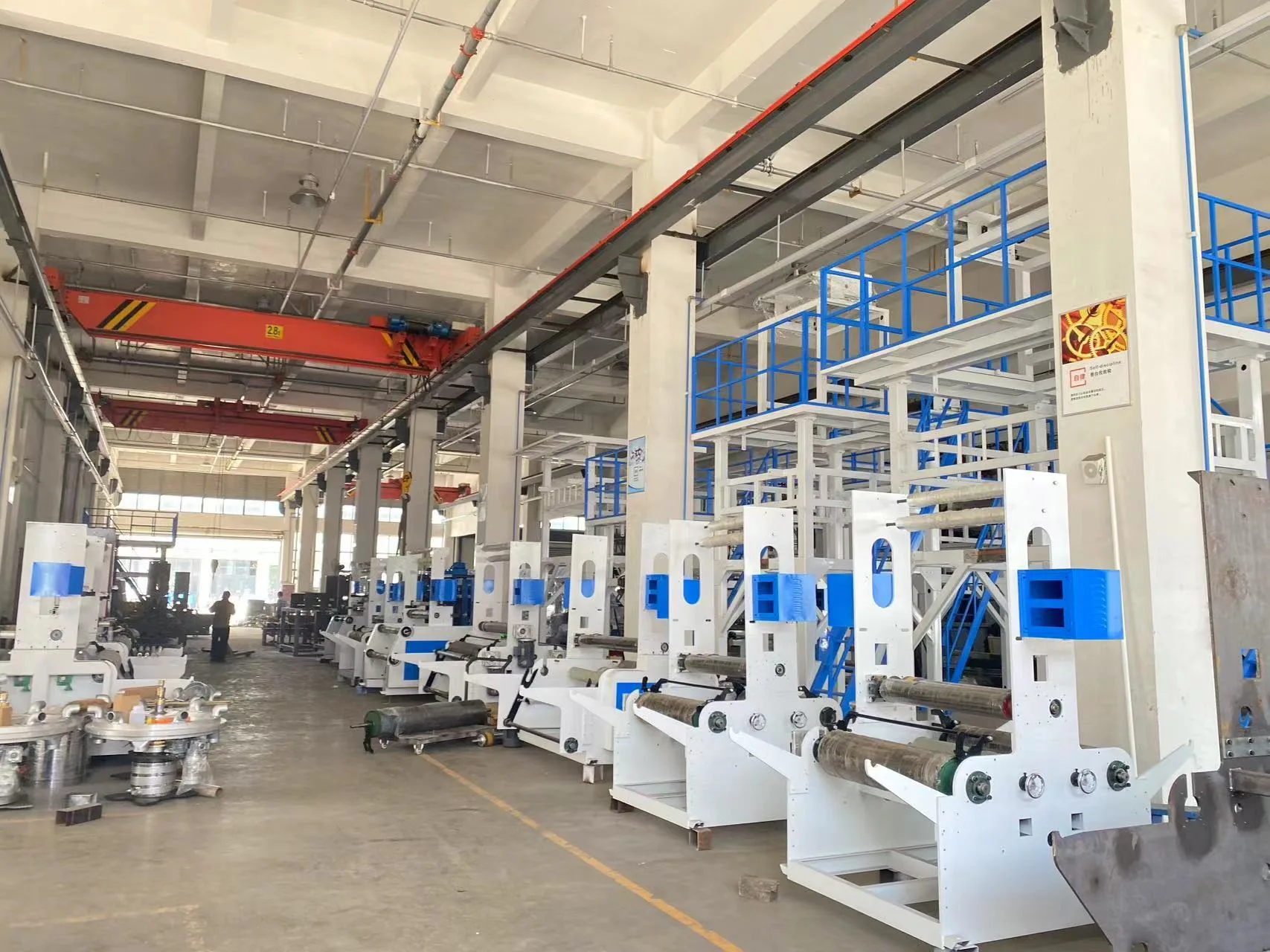

Machine Assembly
Dedicated assembly lines with skilled technicians ensuring precise construction and alignment of every film blowing machine before delivery.

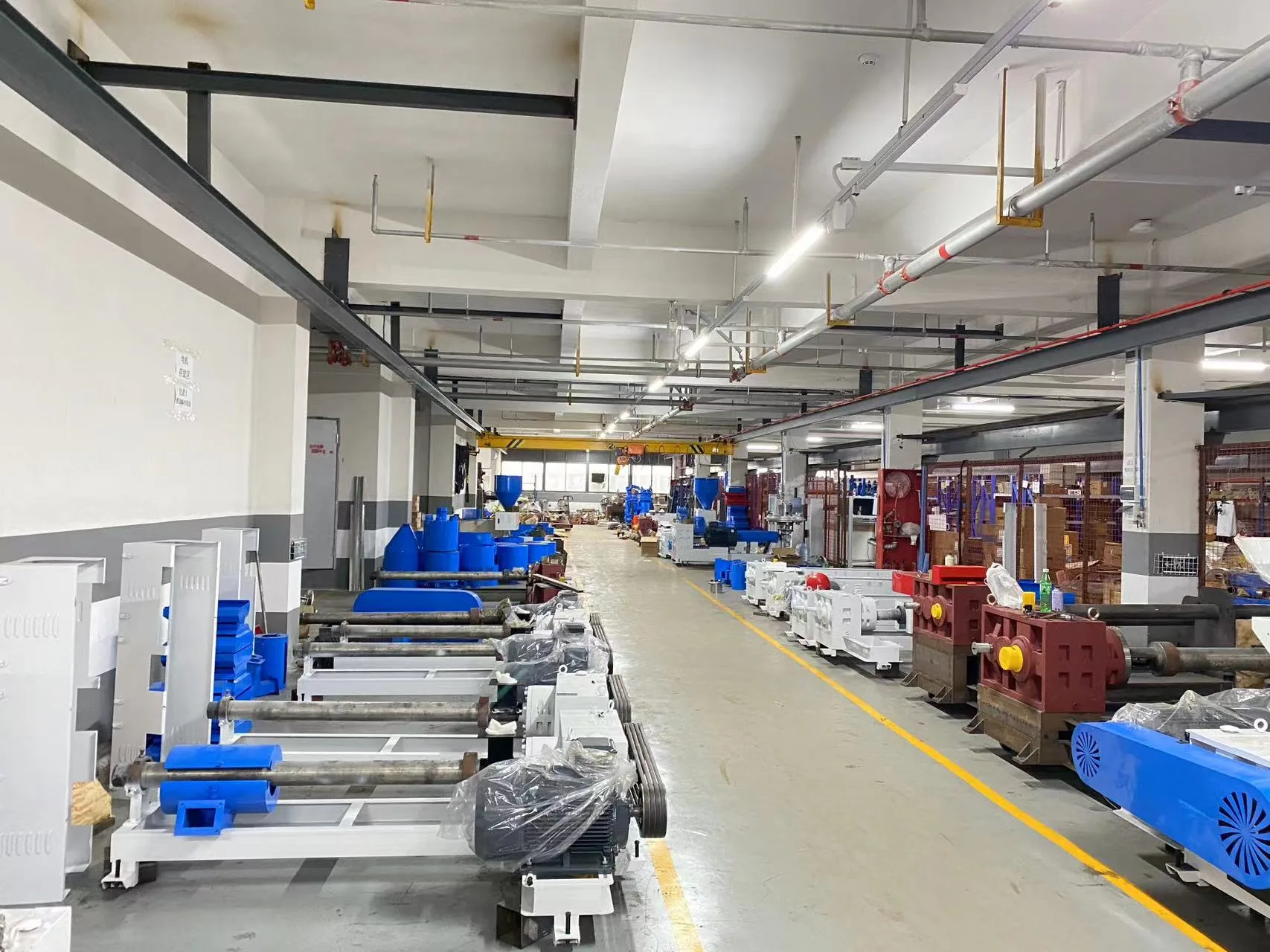

Screw Processing
Specialized screw machining facility producing hard-faced alloy barrier screws with precision L/D ratio and compression profile for each machine.

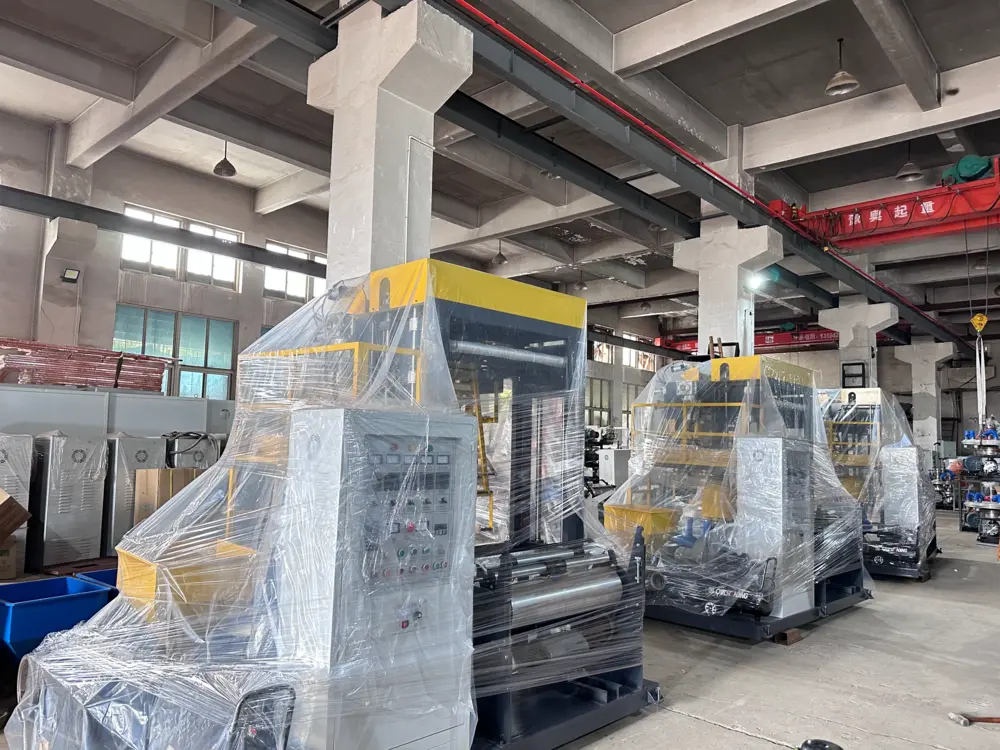

Quality Control
Every machine undergoes strict testing — electrical safety check, trial run with materials, and film quality inspection before shipment.
International Certifications
All film blowing machines comply with international quality and safety standards. CE-certified for the European market, with additional compliance documentation available upon request for your destination country.
Film Blowing Machine Capacity Comparison
Compare key specifications to find the right model for your production needs.
| Model | Film Width | Output | Layers | Best For |
|---|---|---|---|---|
| Mini Series | 100-600 mm | 10-40 kg/h | 1 | R&D, Lab, Small Batch |
| Monolayer Series | 200-2000 mm | 30-150 kg/h | 1 | General Packaging, Startups |
| ABA Series | 600-1600 mm | 80-200 kg/h | ABA (3:2) | Shopping, Garbage, Courier Bags |
| 3-Layer IBC | 800-2800 mm | 150-500 kg/h | 3 (A/B/C) | Agricultural, Food, Industrial Film |
| PP Series | 200-1200 mm | 30-120 kg/h | 1-2 | Garment Wrap, Food Packaging |
* Specifications can be customized. Contact us for a tailored configuration.
Frequently Asked Questions About Film Blowing Machines
Everything buyers need to know before requesting a machine quotation.
Get Free Quotation Within 24 Hours
Submit your requirements and our engineers will prepare a complete machine proposal — including technical specs, factory-direct pricing, layout drawing, and production cost analysis. No obligation, completely free.
