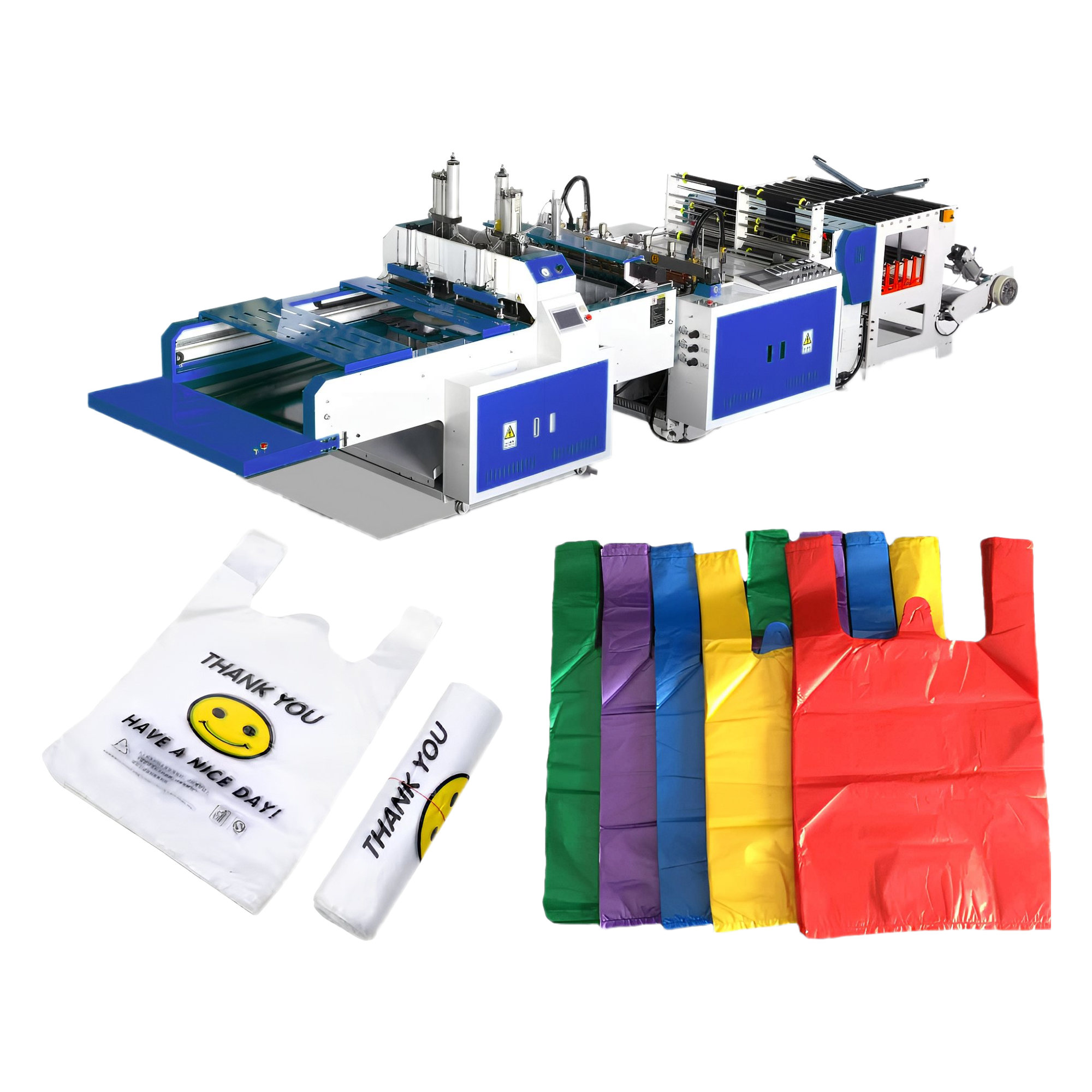

High-speed T-shirt bag making machine with heat sealing and heat cutting

High-speed T-shirt bag making machine with heat sealing and heat cutting

Bottom Seal Flat Bag Making Machine Model: DFR
1. This machine is a special machine for...
WhatsApp Inquiry

Share this product

Product Overview

1. This machine is a special machine for heat sealing and cutting ofvest bags, which can automatically punch two lines, increase outputand save manpower.
2. This machine is double track, double production line, doubleprinting bag, double servo motor.
3. Electric eye induction tracking, accurate printing pattern,automatic stop warning when electric eye fails.4. Host motor inverter control, easy to operate and reduce powerconsumption.
5. Automatic stop device without material.
6. When the machine reaches the set number of sheets, the punching machine immediately clamps the bag without stopping the machine and can continue to feed.
7. The newly designed sealing knife structure, when the sealing knife needs to be cleaned, the sealing knife can be turned over 100 and fixed for cleaning, which is safe, reliable and easier to maintain.
8. The bag is tidy and the seal is firm.
9. Gas-liquid pressurized cylinder punching machine is adopted, with low noise and small air consumption.

Product Photos

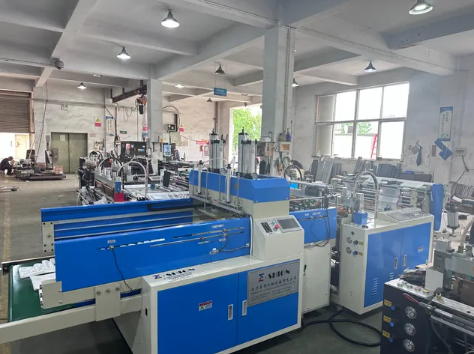

High-speed T-shirt bag making machine with heat sealing and heat cutting - Product Image

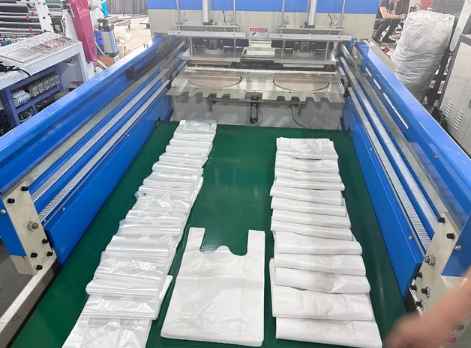

High-speed T-shirt bag making machine with heat sealing and heat cutting - Product Image

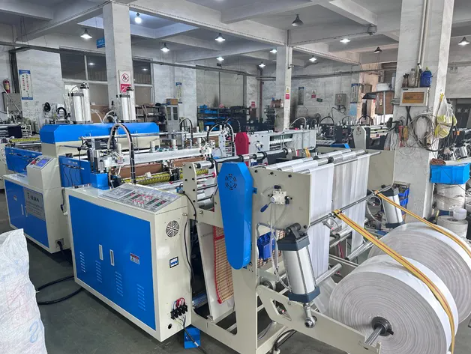

High-speed T-shirt bag making machine with heat sealing and heat cutting - Product Image

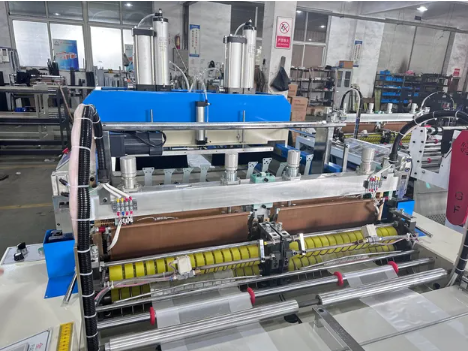

High-speed T-shirt bag making machine with heat sealing and heat cutting - Product Image
High-speed T-shirt bag making machine with heat sealing and heat cutting - Product Image
High-speed T-shirt bag making machine with heat sealing and heat cutting - Product Image

Technical Specifications

Parameter Value
Model DFR 400x2/450x2/500x2/650x1
Width of bag-making 380mmx2~480x2
Length of bag-making 300mm~1000mm
Speed of bag-making (140~400) bags/minx2
Film thickness 0.008-0.035
Raw Material HDPE/LDPE
Machine weight 3000kg~3200kg
Machine dimension(L×W×H) 6500x2800x1900mm
Main motor 1.5kw
Total power 10kw
